Home > Outdoor Wall Mount > Moon Ray 18" LED Outdoor Wall Sconce
55573WTSN

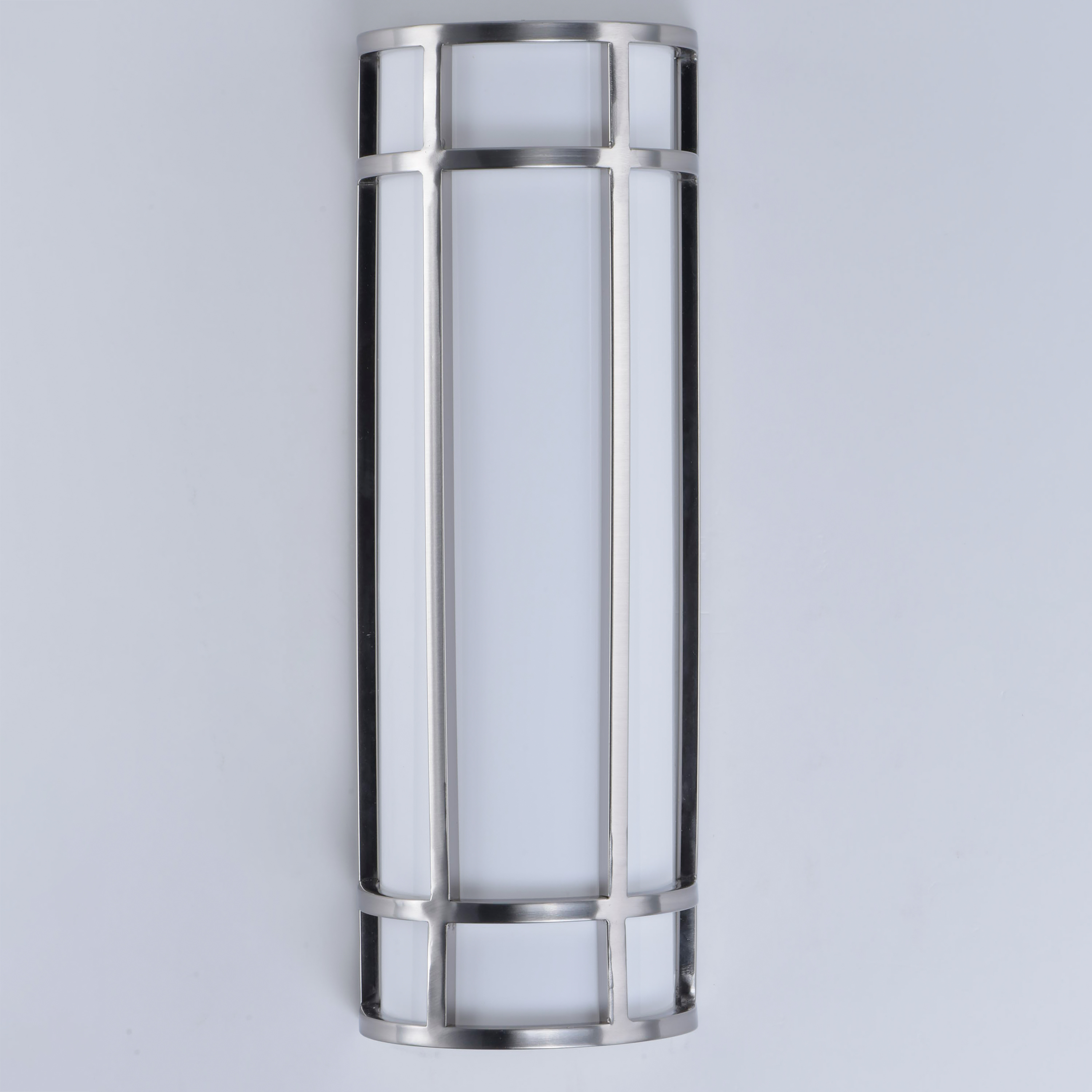

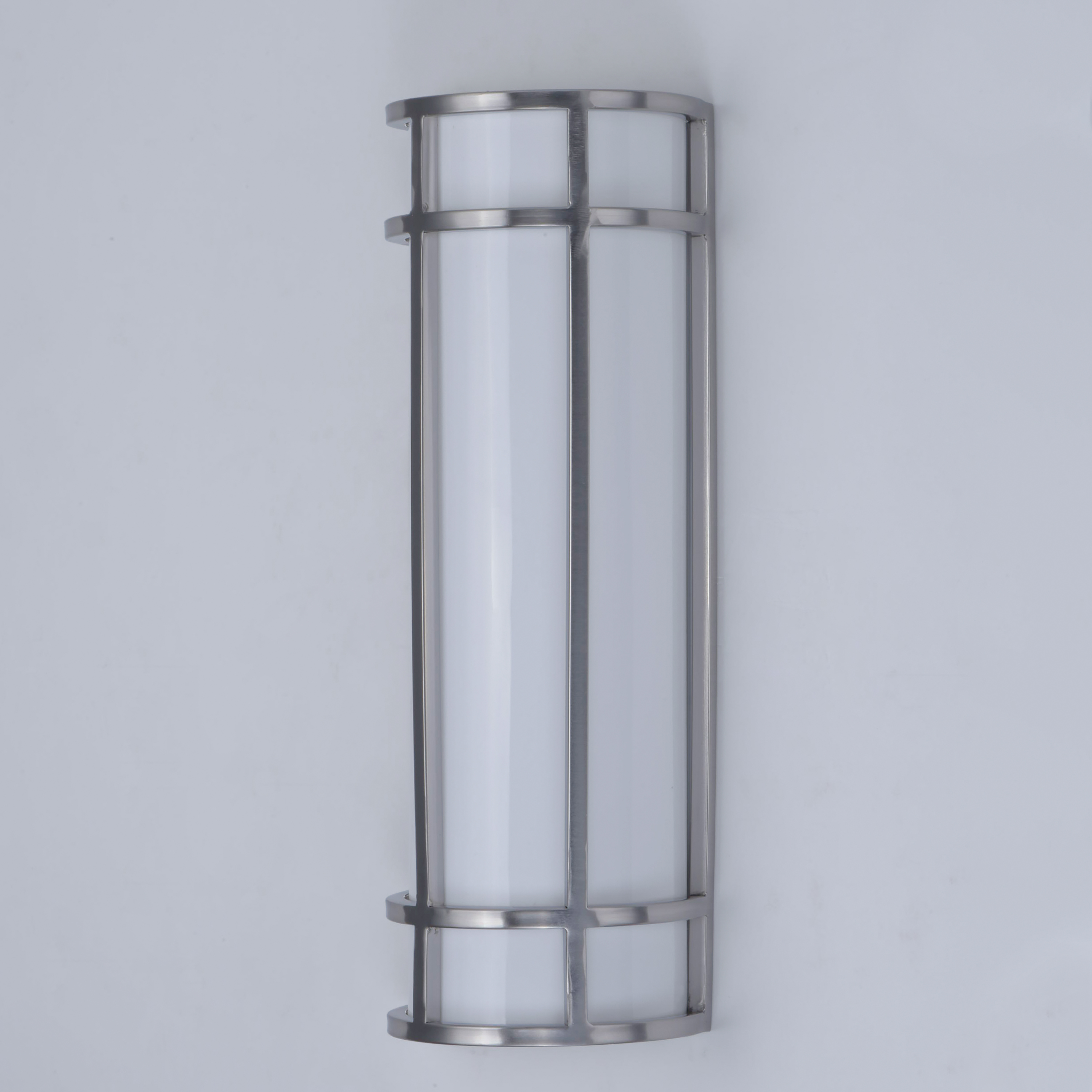

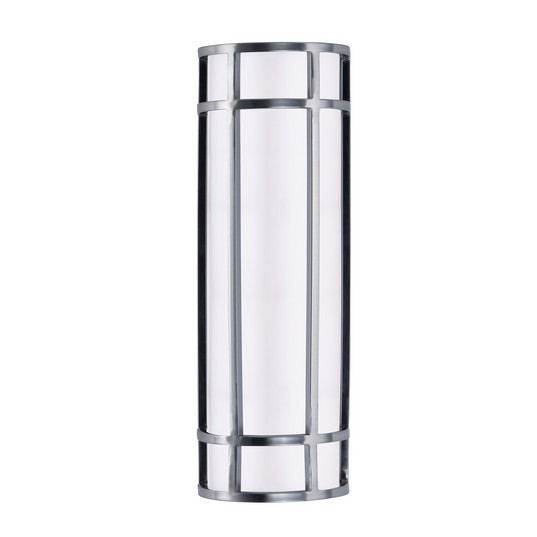

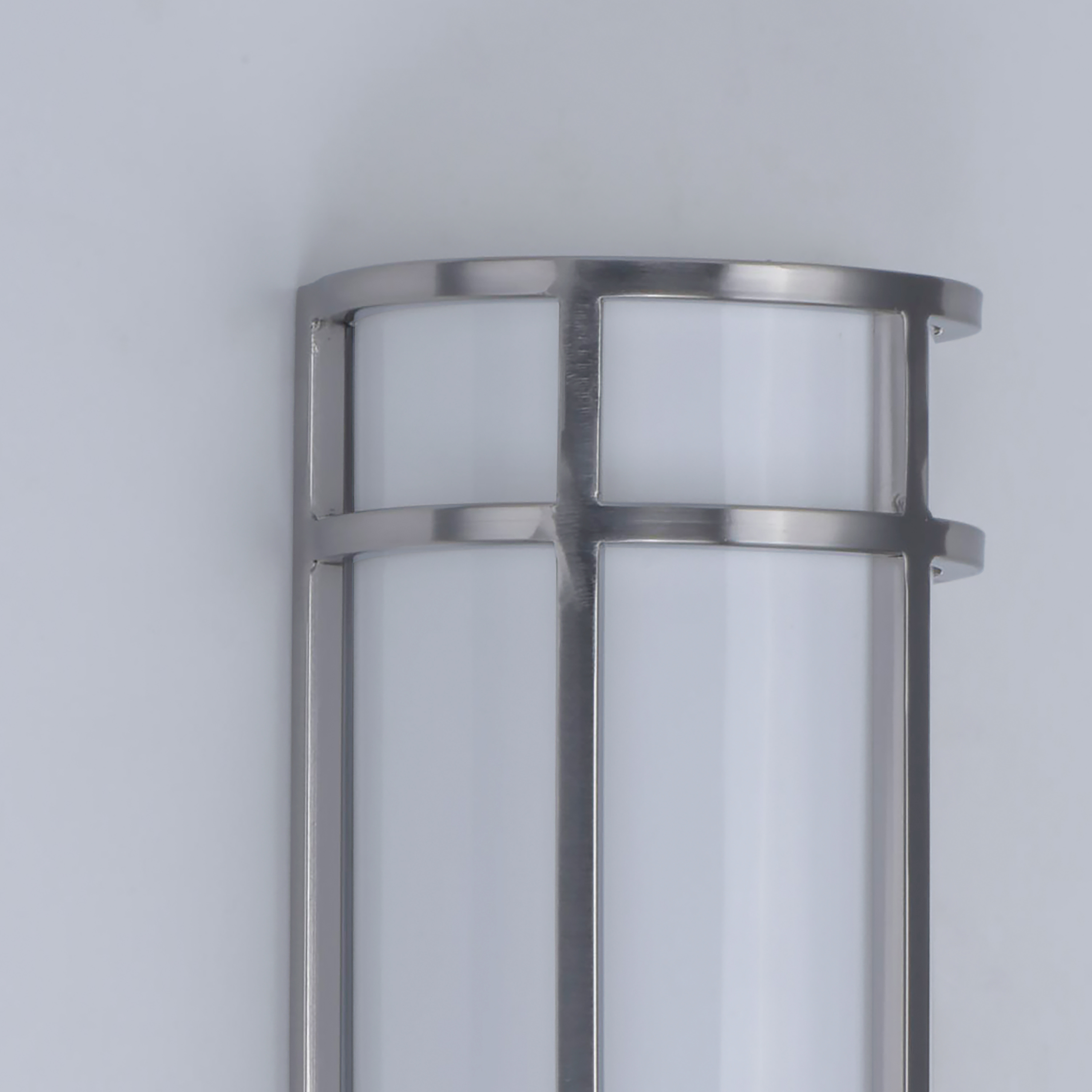

Moon Ray 18" LED Outdoor Wall Sconce
Moon Ray 18" LED Outdoor Wall Sconce
Moon Ray 18" LED Outdoor Wall Sconce
Moon Ray 18" LED Outdoor Wall Sconce

Moon Ray

Moon Ray 18" LED Outdoor Wall Sconce

55573WTSN
$240.00


Crafted of 304 Grade Stainless steel and UV stabilized acrylic, Moon Ray offers a classic design thoughtfully engineered to withstand commercial uses indoors and outdoors. Advanced LED technology delivers high light output.
Collection: Moon Ray Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: Stainless Steel, Acrylic
Finish: Satin Nickel SN
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20
Total Wattage: 20
Install Up/Down: Up
Delivered Lumens: 1000 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 80+
Dimmable: No
Input Voltage: 120-277

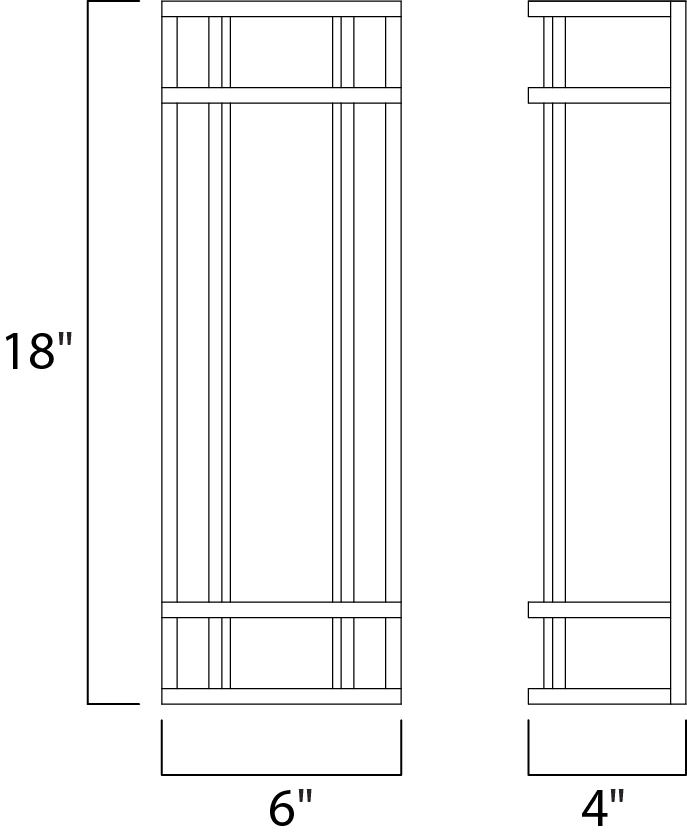

MEASUREMENTS

Width: 6"
Height: 18"
Extension: 4"
HCO: 9"
BP Width: 5.25"
BP Height: 17"
Hanging Weight: 3.42 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Energy Star: Yes Click for Additional Information on ENERGY STAR
Finish: Satin Nickel
Material: Stainless Steel, Acrylic



Crafted of 304 Grade Stainless steel and UV stabilized acrylic, Moon Ray offers a classic design thoughtfully engineered to withstand commercial uses indoors and outdoors. Advanced LED technology delivers high light output.
