Home > Outdoor Wall Mount > Lightray Medium LED Outdoor Wall Lamp
86174BK

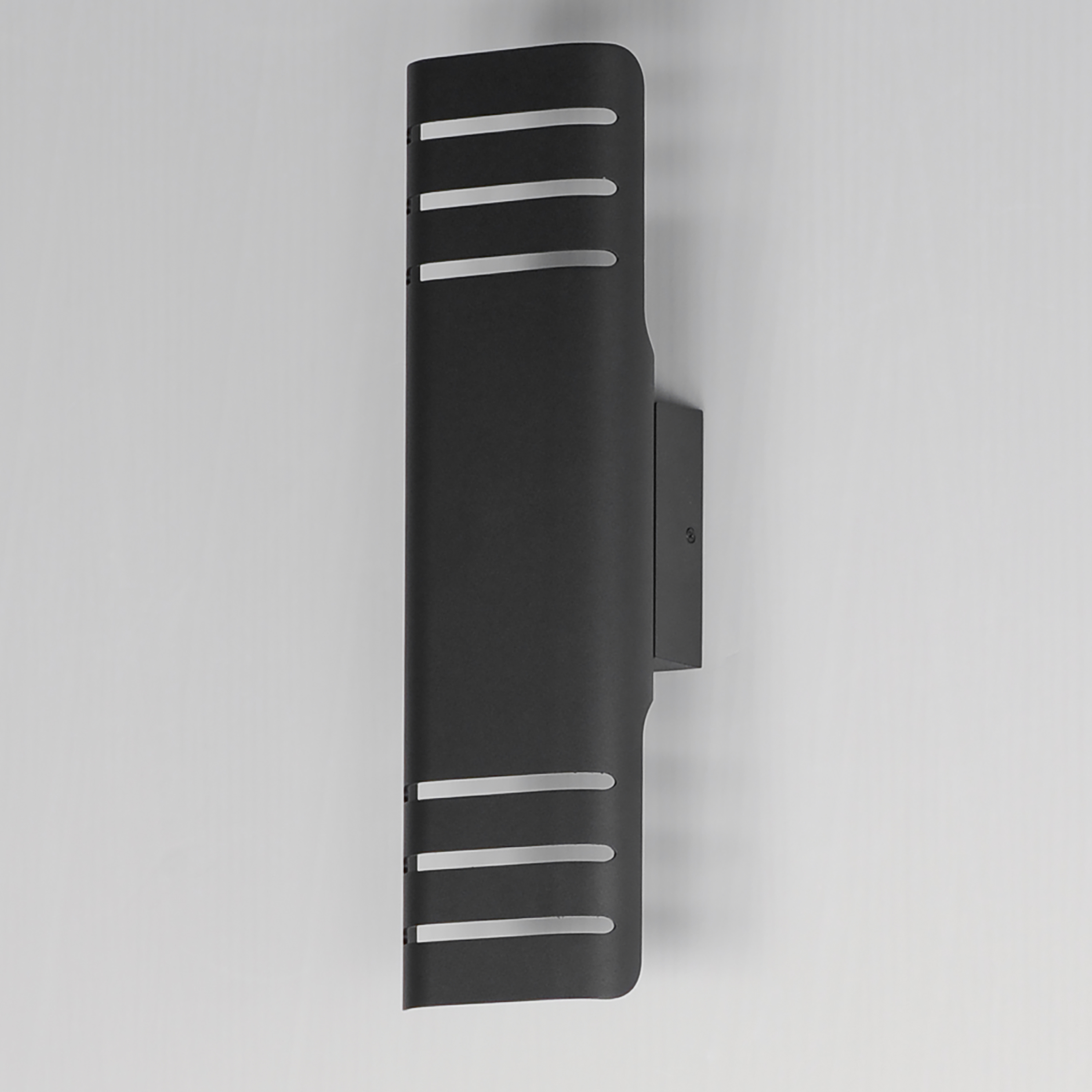

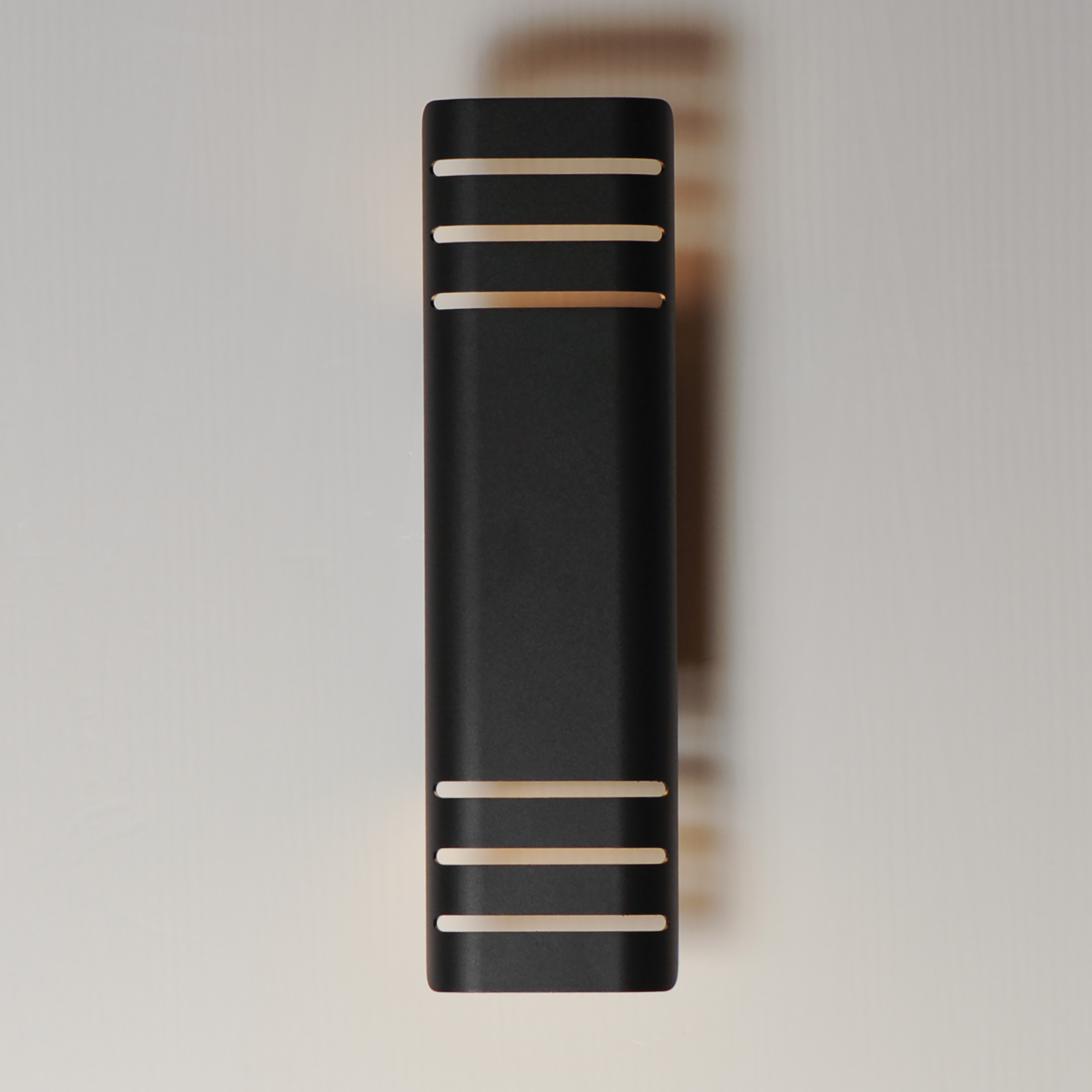

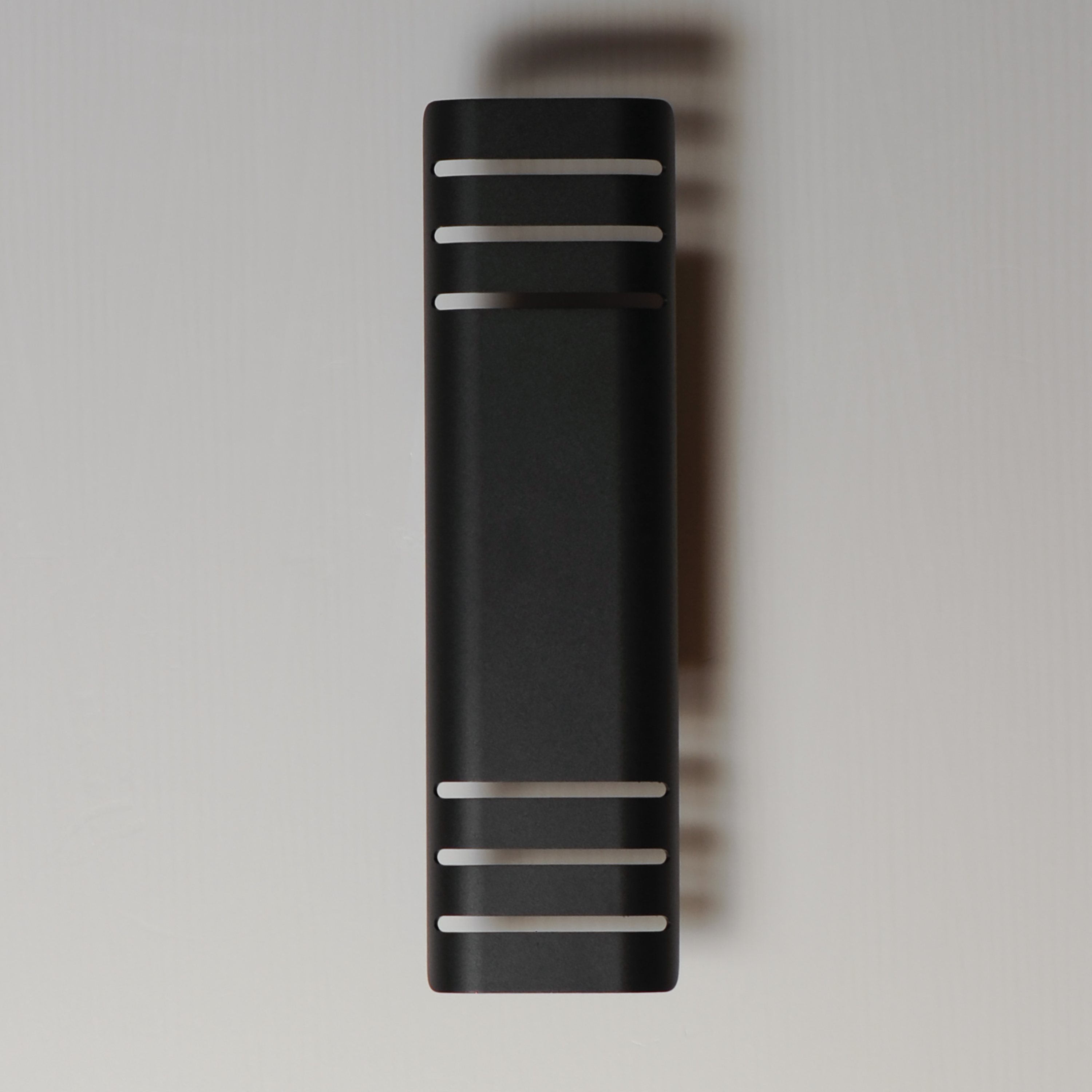

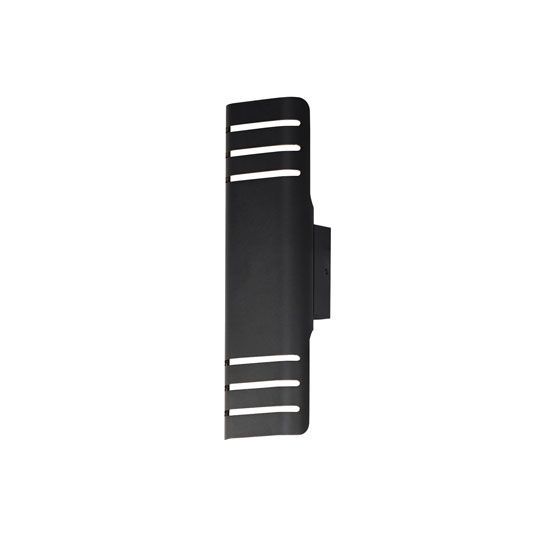

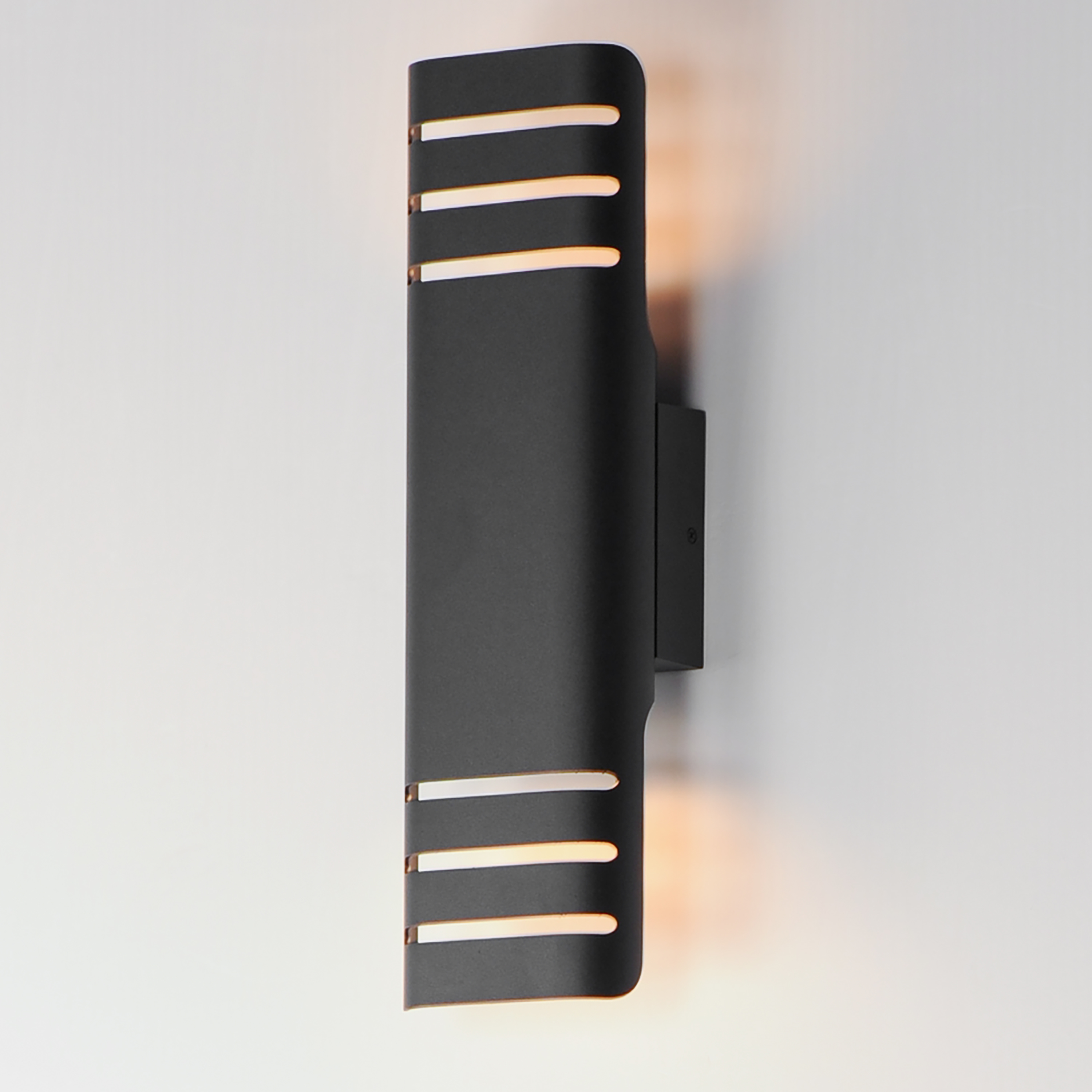

Lightray Medium LED Outdoor Wall Lamp
Lightray Medium LED Outdoor Wall Lamp
Lightray Medium LED Outdoor Wall Lamp
Lightray Medium LED Outdoor Wall Lamp
Lightray Medium LED Outdoor Wall Lamp

Lightray LED

Lightray Medium LED Outdoor Wall Lamp

86174BK
$178.00

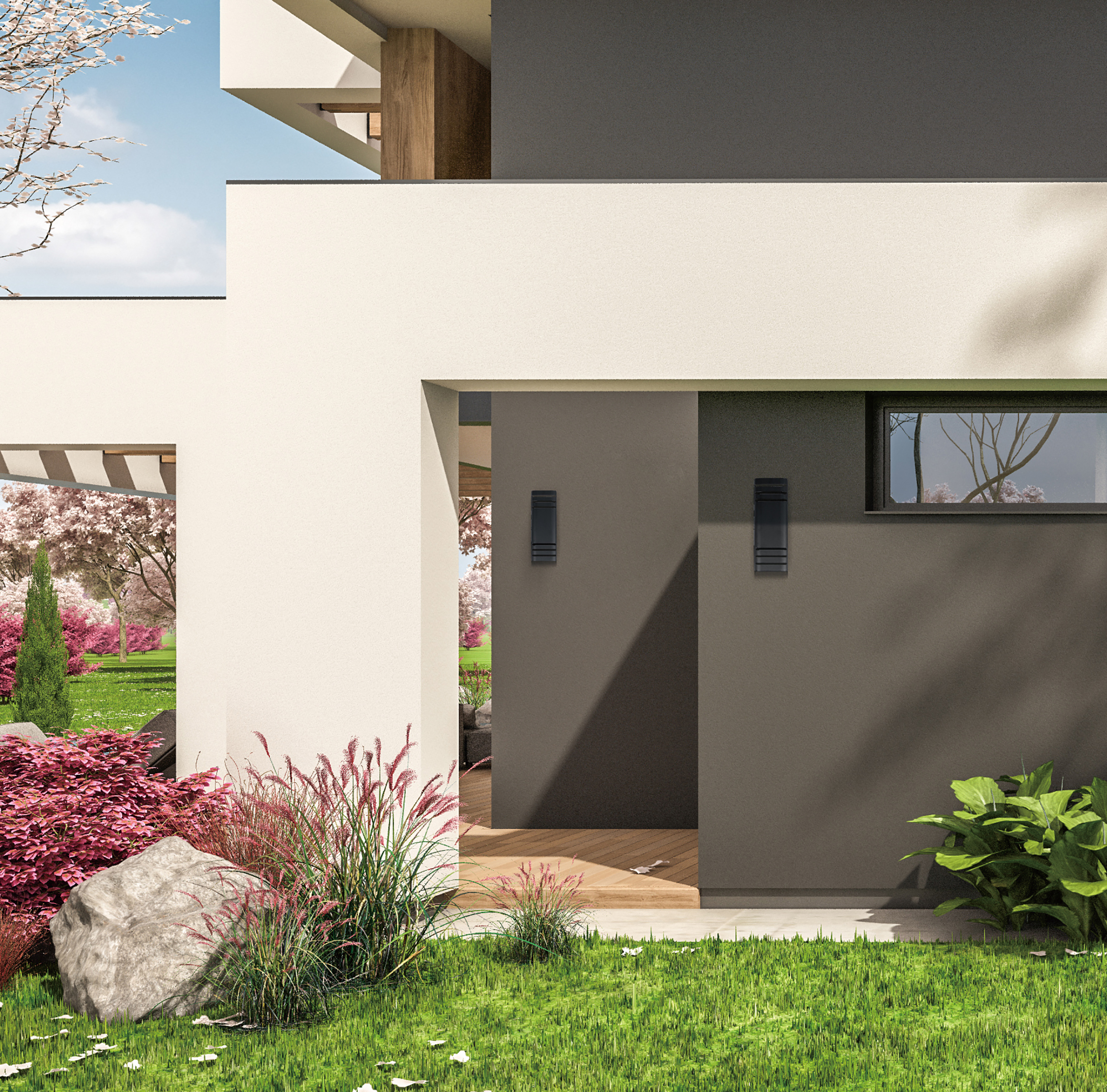

Indirect exterior lighting not only provides illumination where you want but it also highlights the building structure for a beautiful architectural effect. Our collection of up and down lighting fixtures are available in both Architectural Bronze, Black, and Brushed Aluminum.
Collection: Lightray LED Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: Aluminum
Finish: Black BK
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 2
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 8
Total Wattage: 16
Lighting Direction: Directional
Install Up/Down: Any
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 720 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Y
Input Voltage: 120
MEASUREMENTS

Width: 5"
Height: 17.25"
Extension: 3.25"
HCO: 8.75"
BP Width: 4.75"
BP Height: 4.75"
Wire Length: 8"
Hanging Weight: 2.1 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Finish: Black
Material: Aluminum

| MAIN



Indirect exterior lighting not only provides illumination where you want but it also highlights the building structure for a beautiful architectural effect. Our collection of up and down lighting fixtures are available in both Architectural Bronze, Black, and Brushed Aluminum.
