Home > Countermax Cabinet Counter Task Lighting > CounterMax MX-L-LPC 24" 8-Light LED Under Cabinet
89943BRZ

CounterMax MX-L-LPC

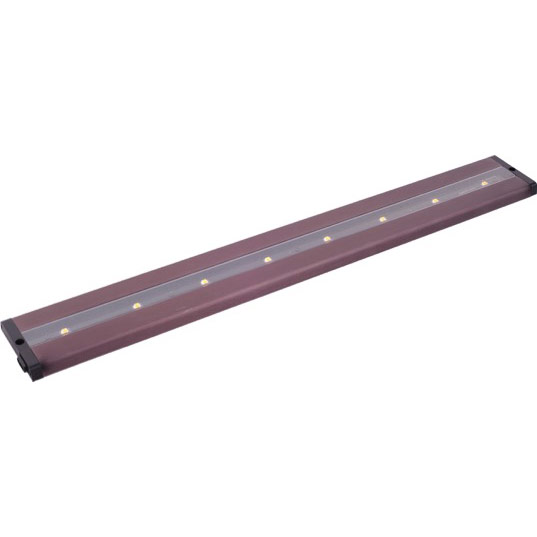

CounterMax MX-L-LPC 24" 8-Light LED Under Cabinet

89943BRZ
$168.00



Discontinued MXInterLink5 technology allows for great flexibility in installation of the CounterMax MX-L-LPC series. Each item in the MX-L-LPC series is sold separately, and the MX-L-LPC under cabinet light will require additional accessories if not being used as an add-on to an existing installation. The MX-L-LPC series features a built-in dimmable driver that can be powered by a corded plug, direct-wire via a direct wire box or by being connected via a connecting cord to another unit. All accessories are sold separately and are available in black or white to better match cabinets and MX-L-LPC finish. Uses MXInterLink5 accessories. Click here for a complete list of compatible accessories.

Lutron® or Leviton® LED Dimmer
The CounterMax MX-L-LPC series, a state-of-the-art low profile LED under cabinet light, installs easily under the cabinet and emits a crisp white light which illuminates without shadows. Dimmable using a standard wall dimmer and cabinets stay cool and safe with LED light output. CounterMax MX-L-LPC series is connectable with or without cords using MXInterLink5 technology, making this series convenient as well as beautiful.
Collection: CounterMax MX-L-LPC Click for Addtional Information on the Cubic Collection
Type: Under Cabinet
Material: Aluminum
Glass: Clear
Finish: Anodized Bronze BRZ

pdf Specification Sheet
LAMPING

Number of Bulb: 8
Light Type: LED
Bulb Type: Cree LED An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 2.37
Total Wattage: 19
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 903 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 85
Dimmable: Triac CL
Input Voltage: 120

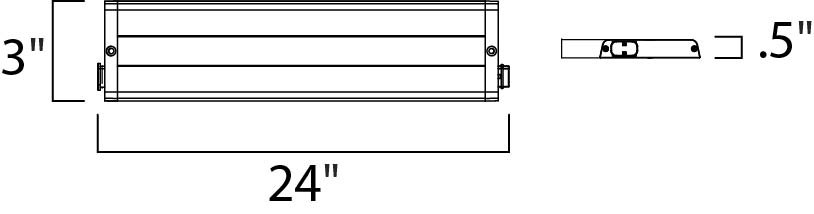

MEASUREMENTS

Width: 3"
Height: 0.55"
Length: 24"
Hanging Weight: 3.3 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Finish: Anodized Bronze
Material: Aluminum



The CounterMax MX-L-LPC series, a state-of-the-art low profile LED under cabinet light, installs easily under the cabinet and emits a crisp white light which illuminates without shadows. Dimmable using a standard wall dimmer and cabinets stay cool and safe with LED light output. CounterMax MX-L-LPC series is connectable with or without cords using MXInterLink5 technology, making this series convenient as well as beautiful.
