Halfpipe

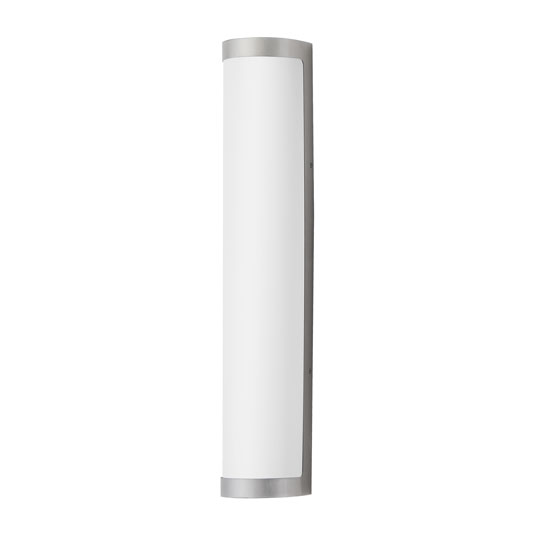

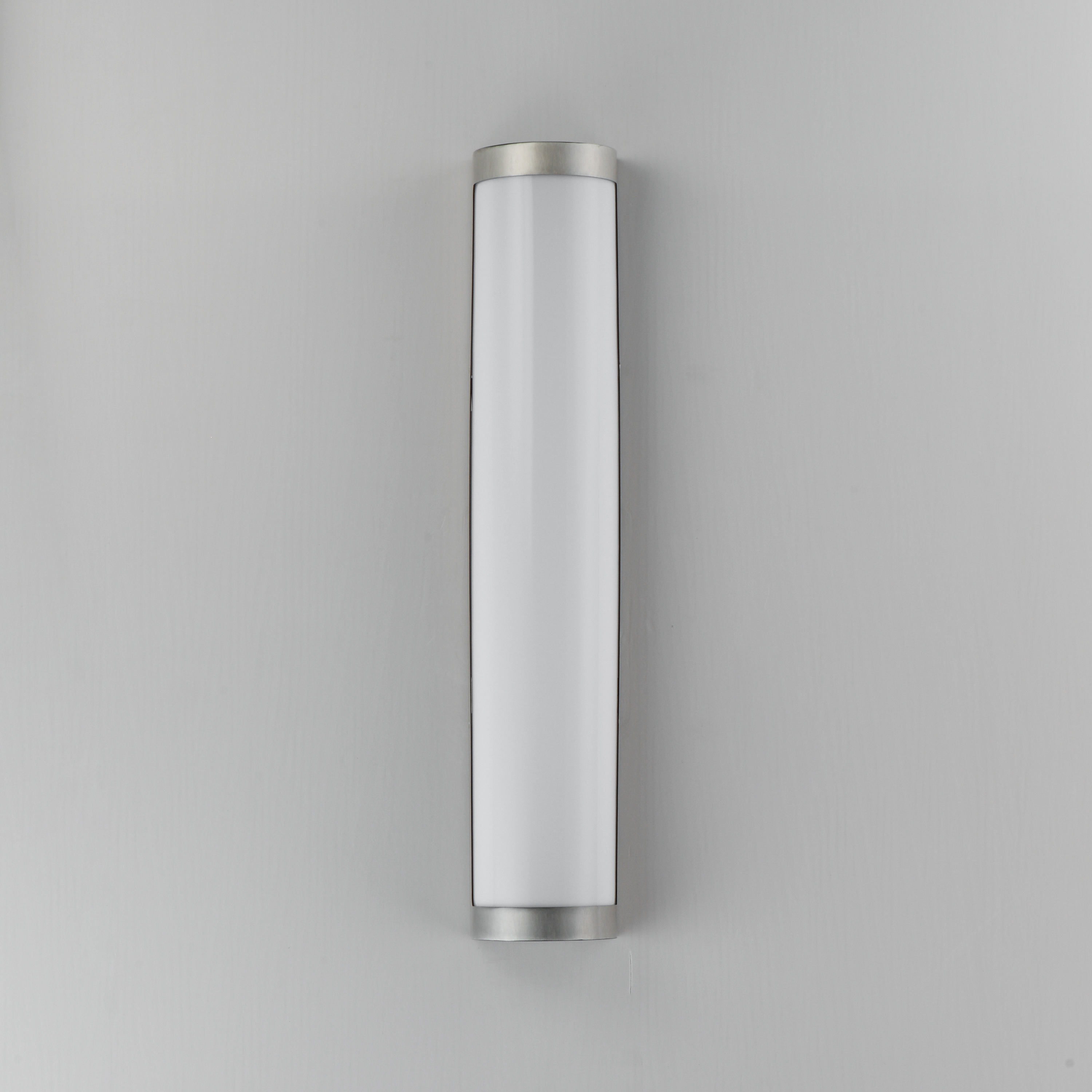

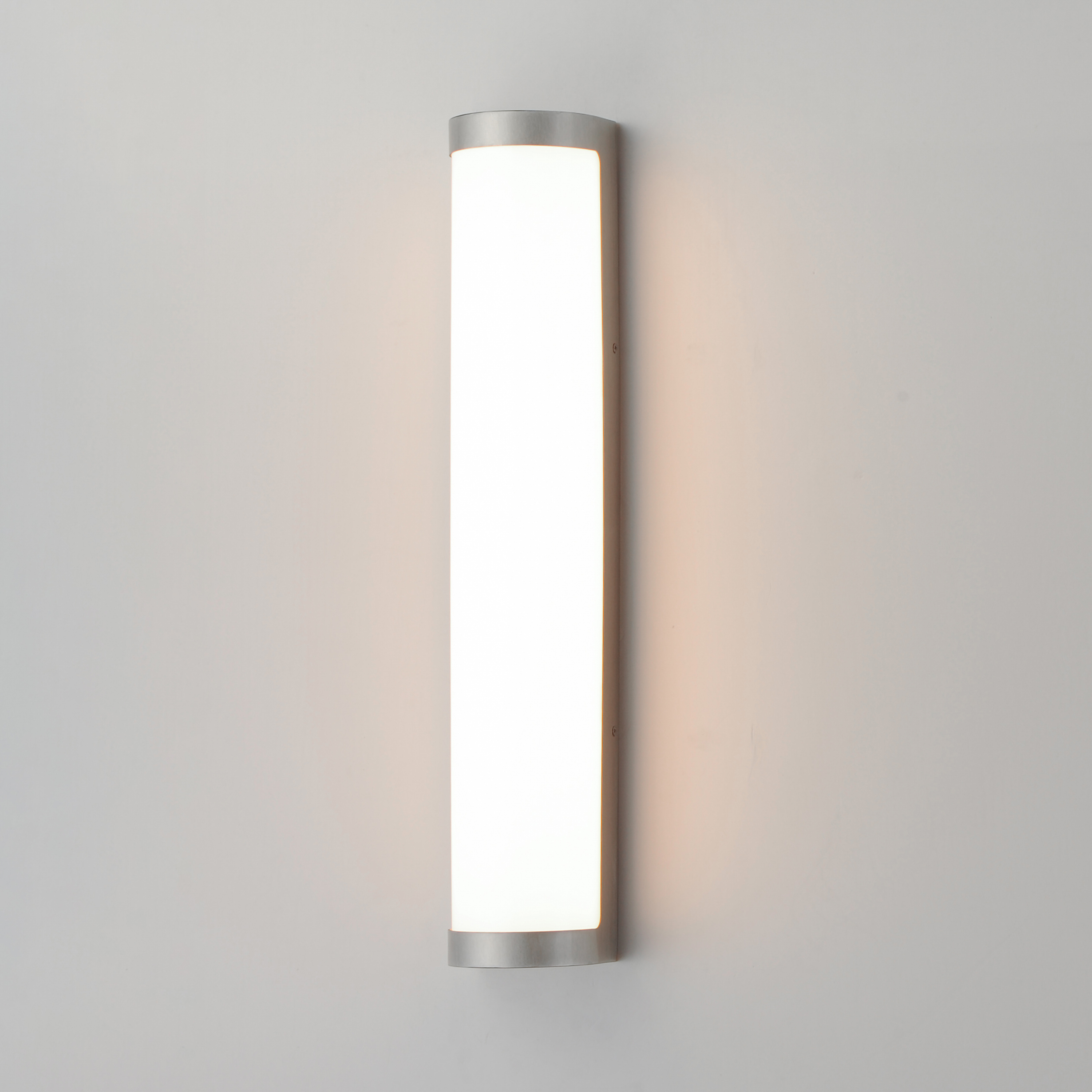

Halfpipe 26" LED Outdoor Sconce - 5CCT

55514WTAL
$298.00

Featuring robust aluminum construction, the Halfpipe collection is designed for commercial applications outdoor. A half round form factor of uniformly illuminated frosted UV-rated acrylic diffuser is framed in Black or Brushed Aluminum metal. Commercially rated, dedicated 120-277V LED components, delivers reliable performance in demanding environments. While ideal for exterior facades, its ADA-compliant extension makes it equally suited for interior spaces such as elevator lobbies, hallways, and meeting rooms.
Collection: Halfpipe Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount

Material: Satinledd Steel, Acrylic

Acrylic Lens: White

Finish: Brushed Aluminum
AL
Finish

LAMPING

Number of Bulb: 2
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 18
Total Wattage: 36
Lighting Direction: UP & Down
Install Up/Down: UP & Down
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1800 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2700-3000-3500- K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac CL
Input Voltage: 120

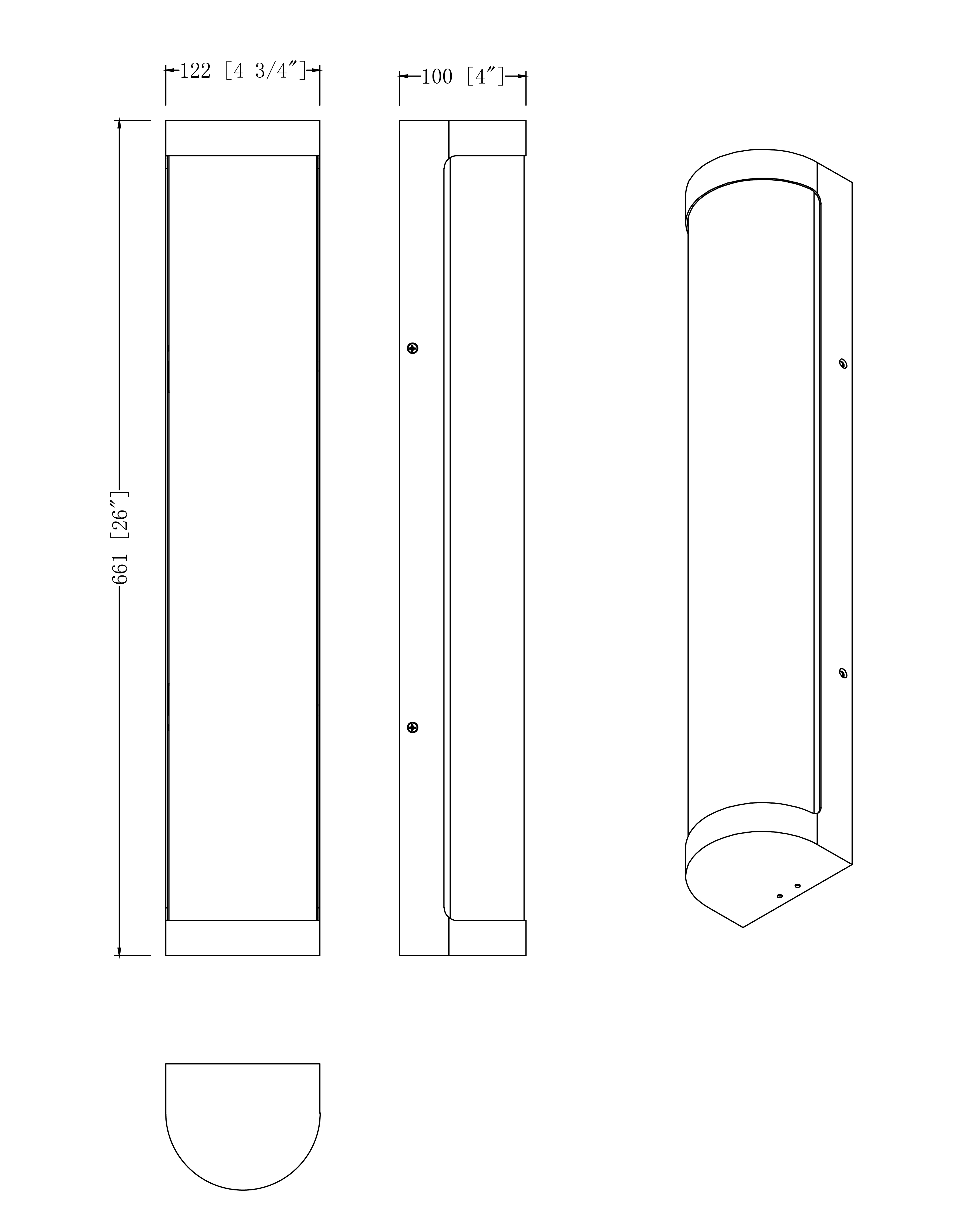

MEASUREMENTS

Width: 5"
Height: 26"
Extension: 4"
HCO: 13"
BP Width: 0.75"
BP Height: 4.25"
Wire Length: 8"
Hanging Weight: 7.89 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Finish: Brushed Aluminum
Material: Satinledd Steel, Acrylic

MAIN



Featuring robust aluminum construction, the Halfpipe collection is designed for commercial applications outdoor. A half round form factor of uniformly illuminated frosted UV-rated acrylic diffuser is framed in Black or Brushed Aluminum metal. Commercially rated, dedicated 120-277V LED components, delivers reliable performance in demanding environments. While ideal for exterior facades, its ADA-compliant extension makes it equally suited for interior spaces such as elevator lobbies, hallways, and meeting rooms.
