Home > Outdoor Wall Mount > Culvert 7.5" LED Outdoor Sconce
86421BK

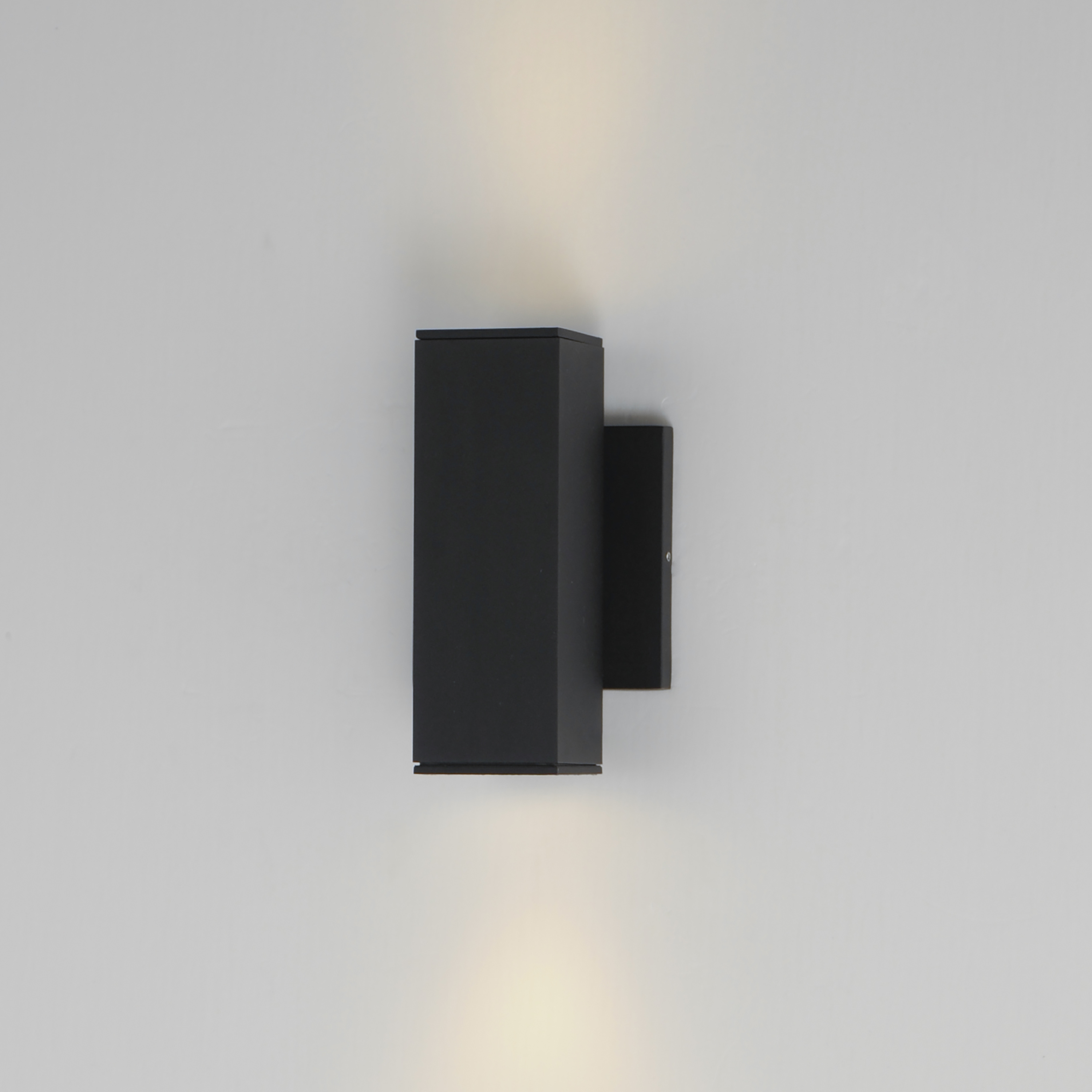

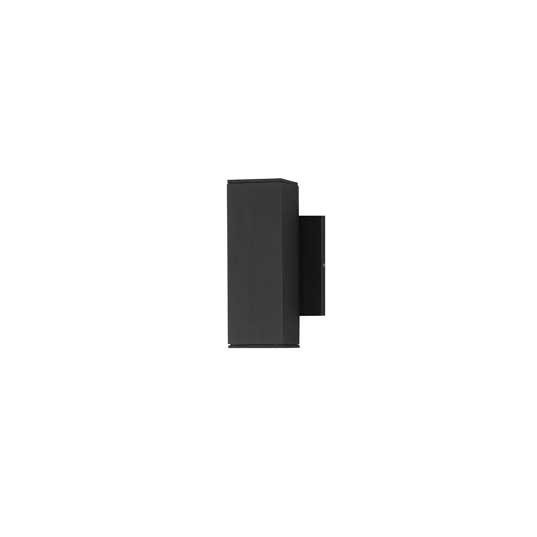

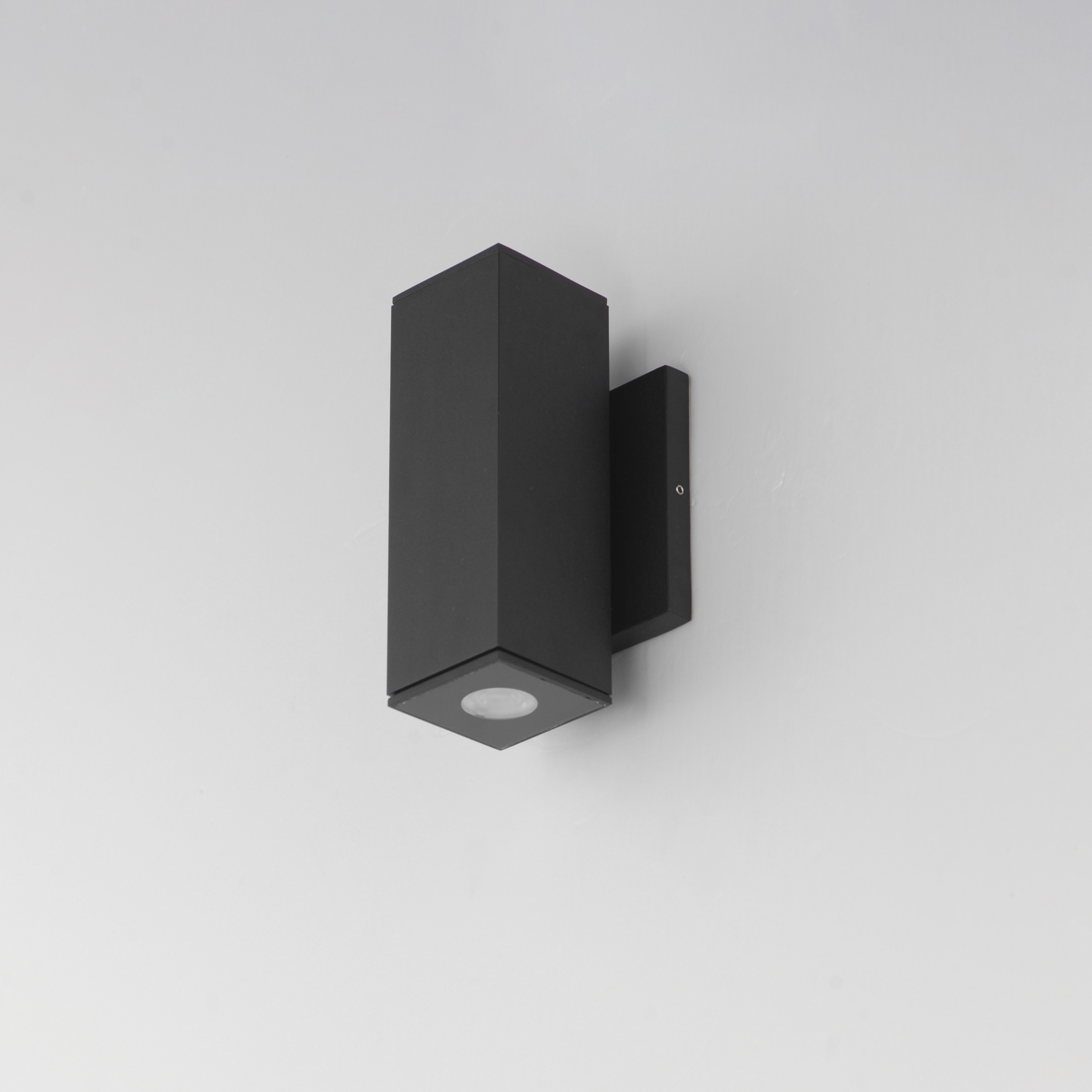

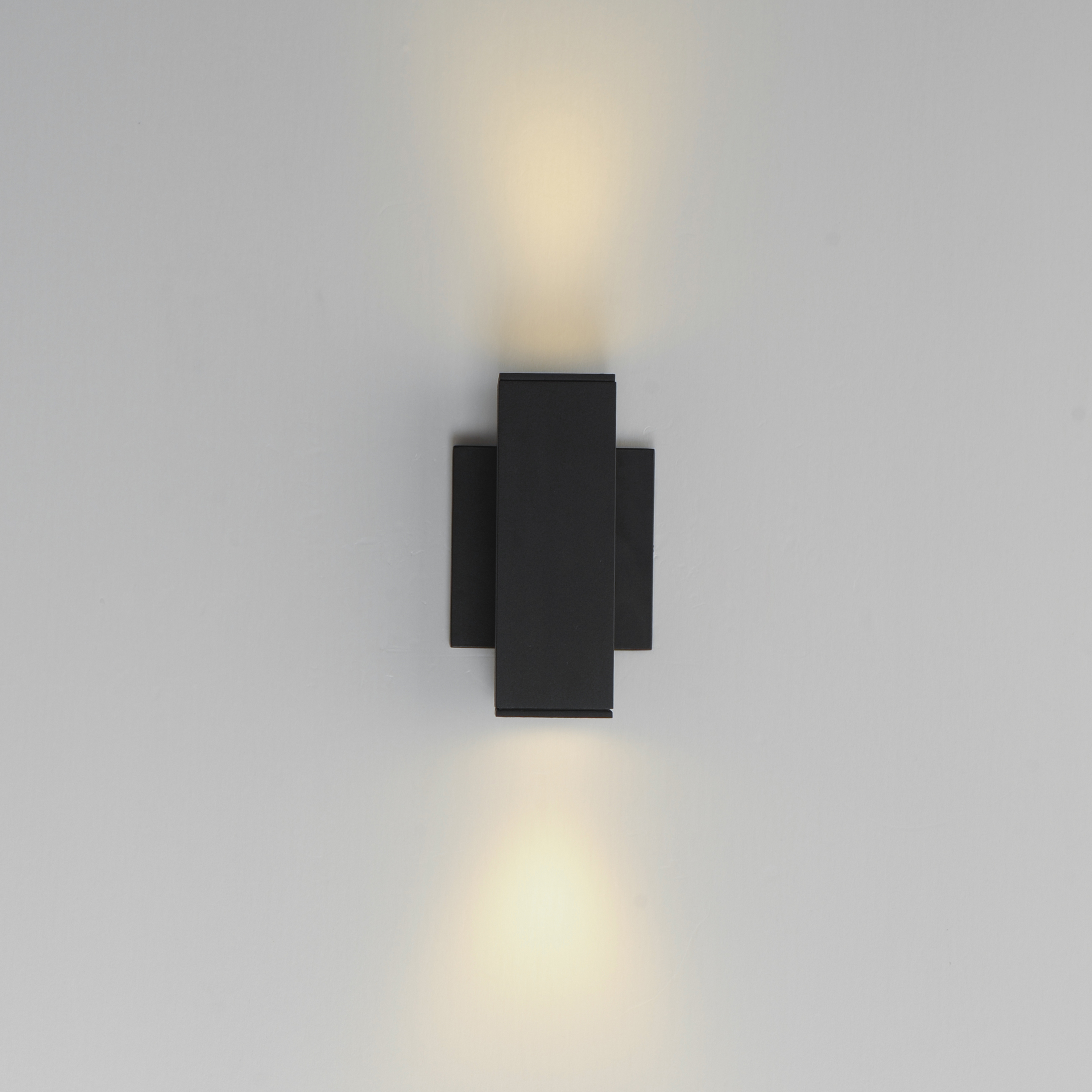

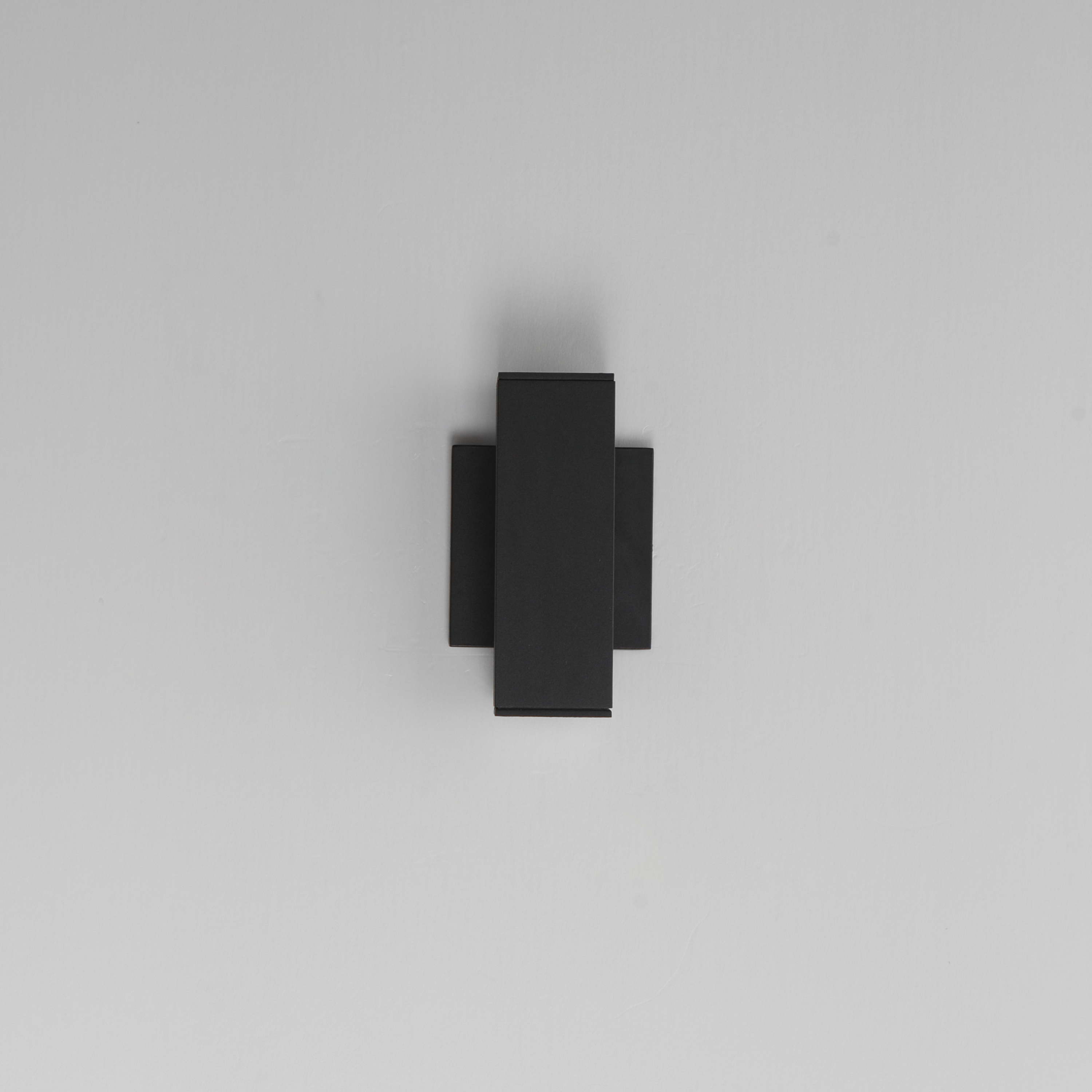

Culvert 7.5" LED Outdoor Sconce
Culvert 7.5" LED Outdoor Sconce
Culvert 7.5" LED Outdoor Sconce
Culvert 7.5" LED Outdoor Sconce

Culvert

Culvert 7.5" LED Outdoor Sconce

86421BK
$118.00


Smaller square profiles extend vertically with ample lighting cast both upward and downwards. The scale of the product is designed to meet ADA requirements, while providing generous light for outdoor applications. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes.
Collection: Culvert Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: Aluminum, Glass
Finish: Black BK
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 2
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 7
Total Wattage: 14
Lighting Direction: Up & Down
Install Up/Down: Up
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1120 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac, 0-10V
Input Voltage: 120-277

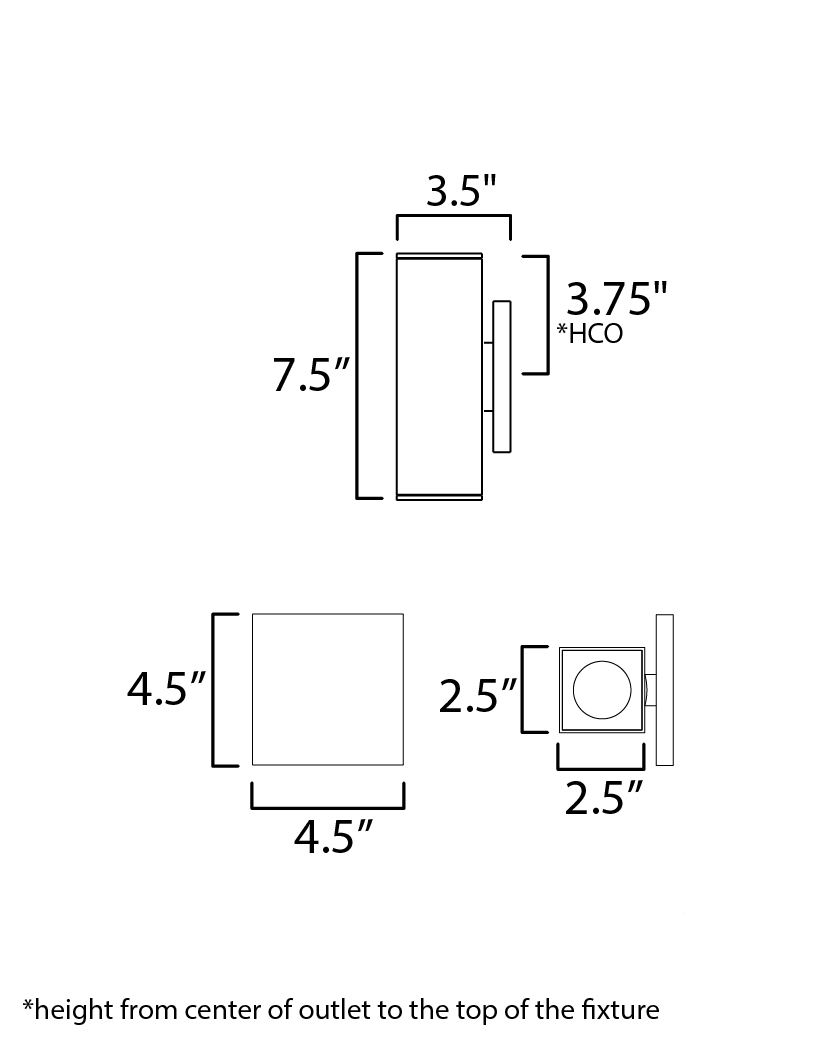

MEASUREMENTS

Width: 2.5"
Height: 7.5"
Extension: 3.5"
HCO: 3.75"
BP Width: 4.5"
BP Height: 4.5"
Wire Length: 8"
Hanging Weight: 2 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Finish: Black
Material: Aluminum, Glass

MAIN



Smaller square profiles extend vertically with ample lighting cast both upward and downwards. The scale of the product is designed to meet ADA requirements, while providing generous light for outdoor applications. Concealed within the frame, there is a range voltage 120-277V LED driver making this a great option for light commercial as well as residential applications. Available in Matte Black, Architectural Bronze and White outdoor powder coat finishes.

Lighting Tips:
