Home > Utility Items > Swinger Mini Adjustable LED Flush Mount
86240WT
Swinger Mini Adjustable LED Flush Mount
Swinger Mini Adjustable LED Flush Mount
Swinger Mini Adjustable LED Flush Mount
Swinger Mini Adjustable LED Flush Mount

Swinger

Swinger Mini Adjustable LED Flush Mount

86240WT
$118.00

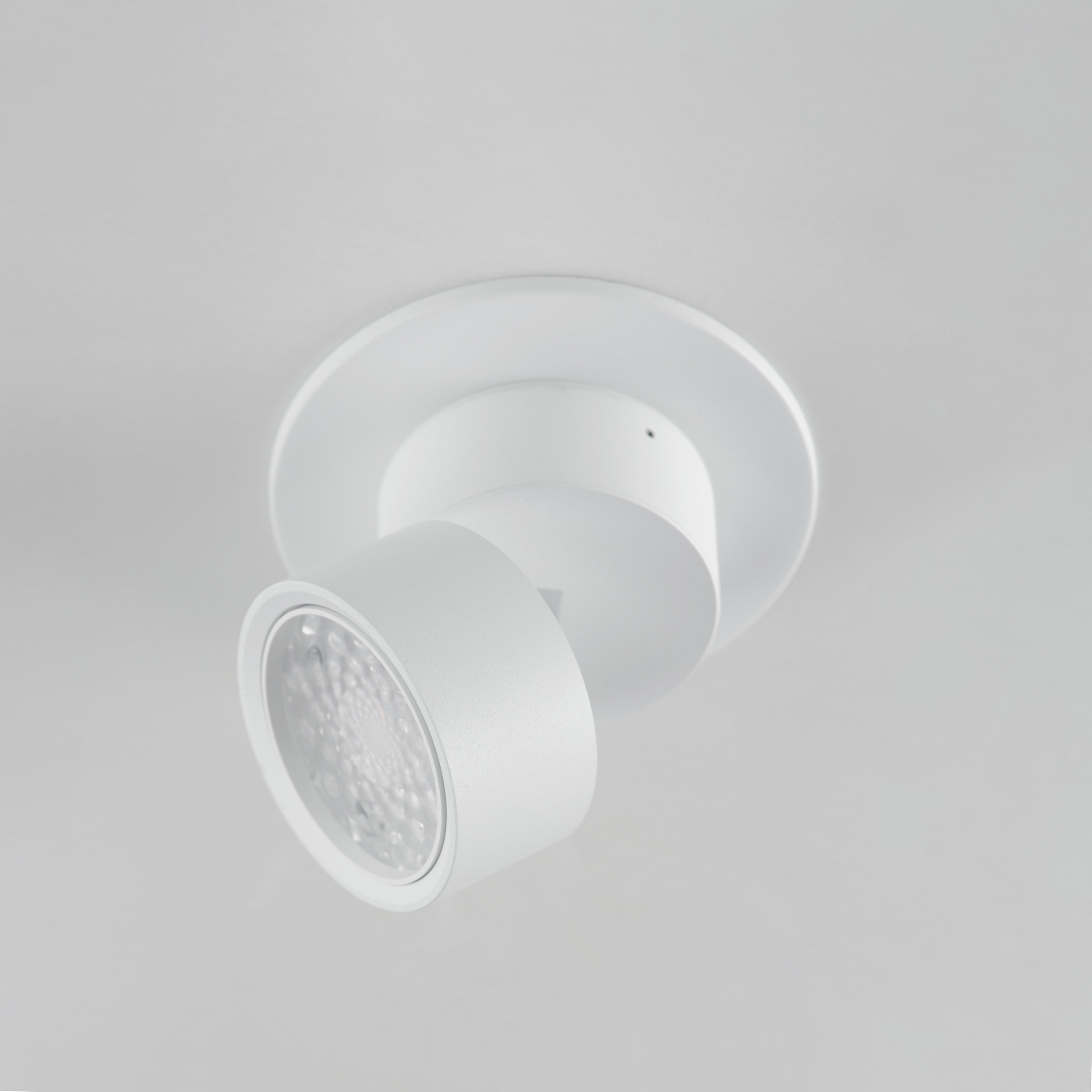

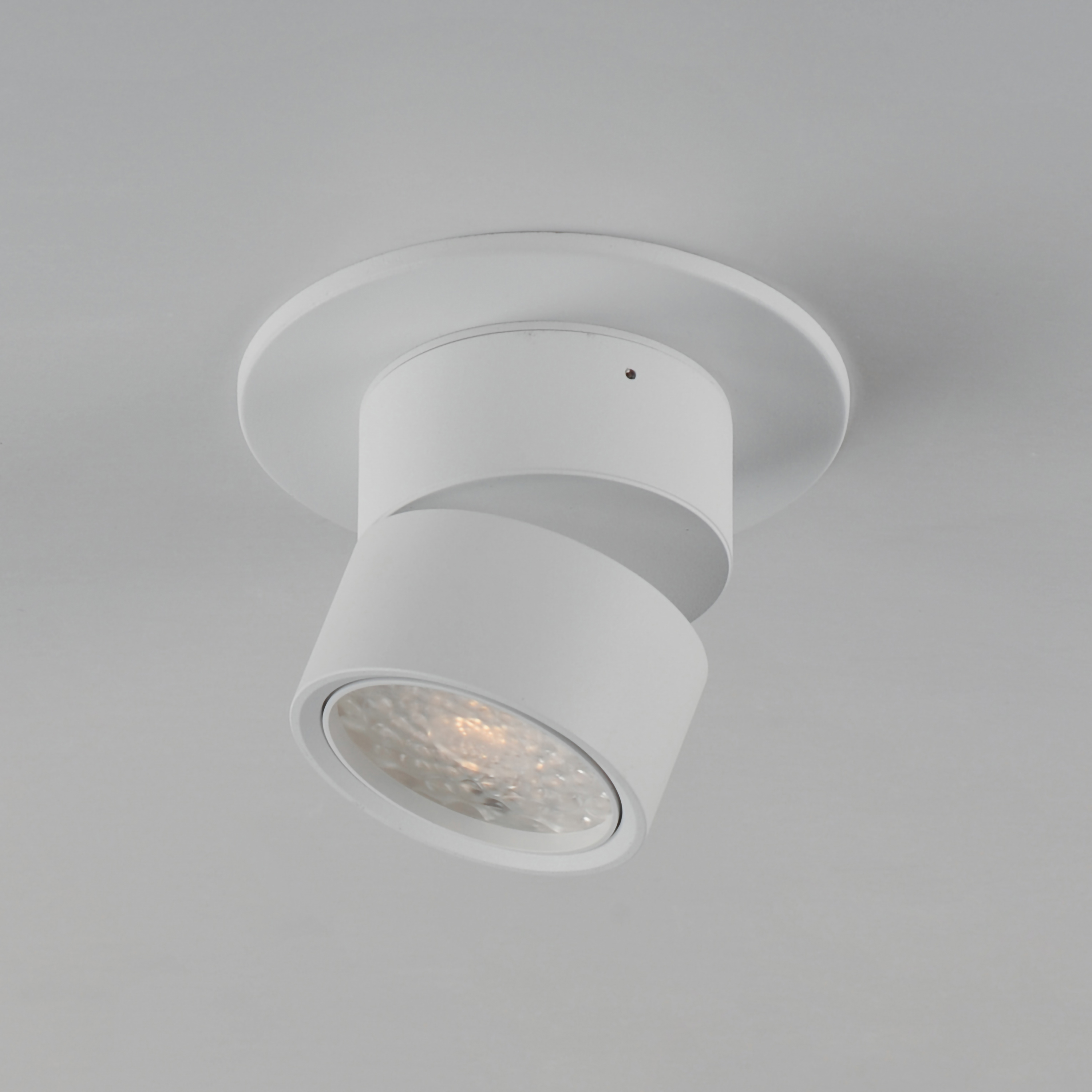

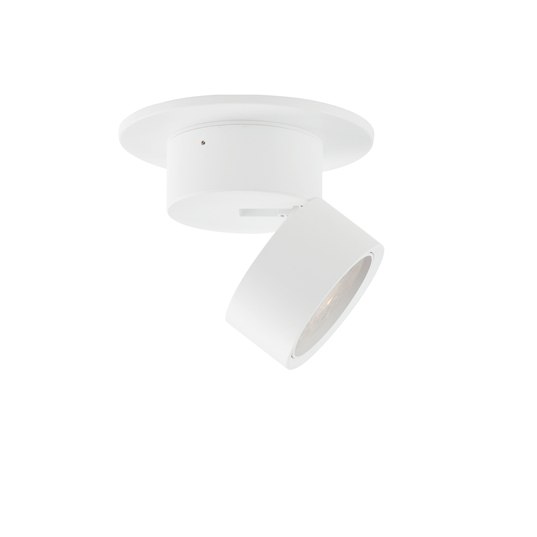

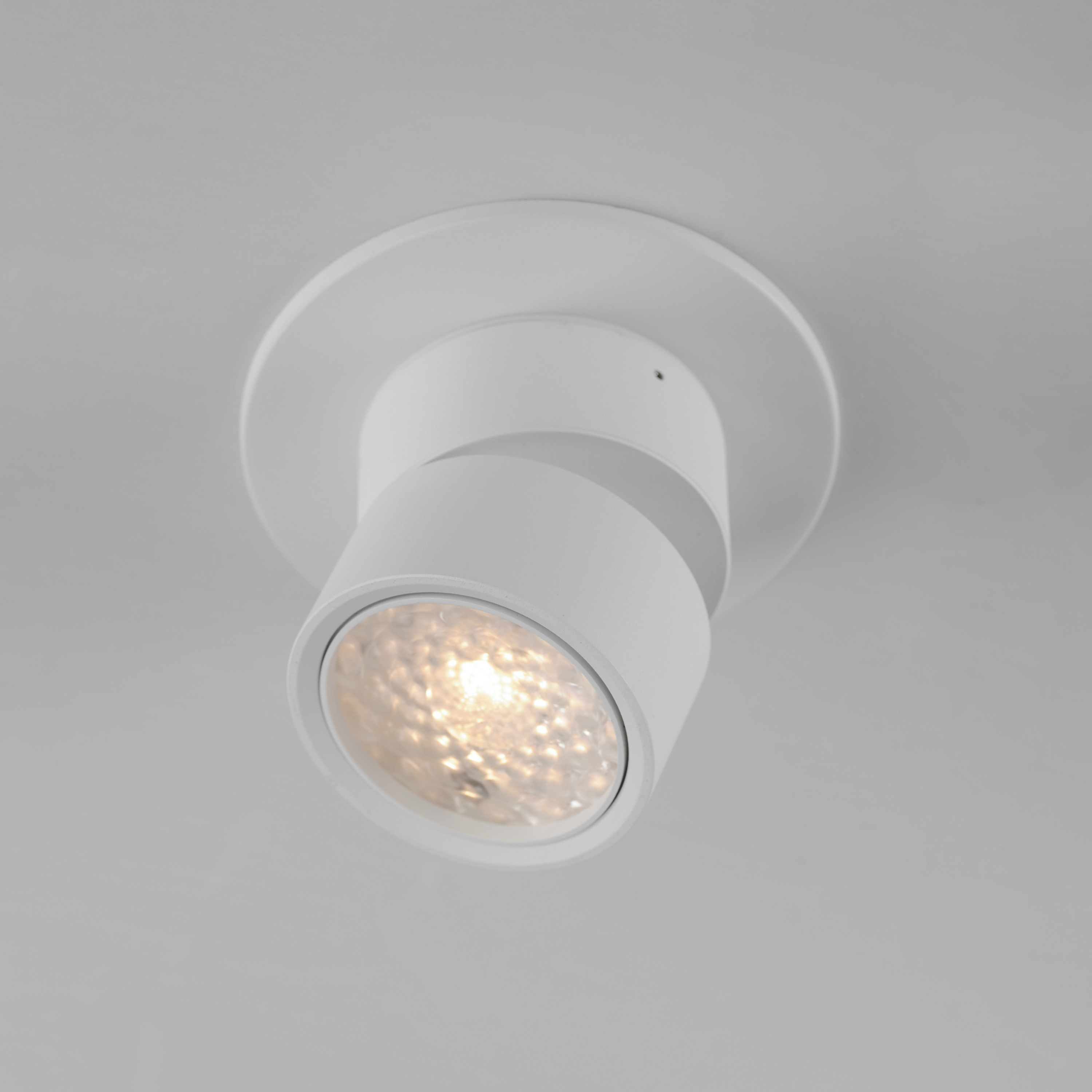

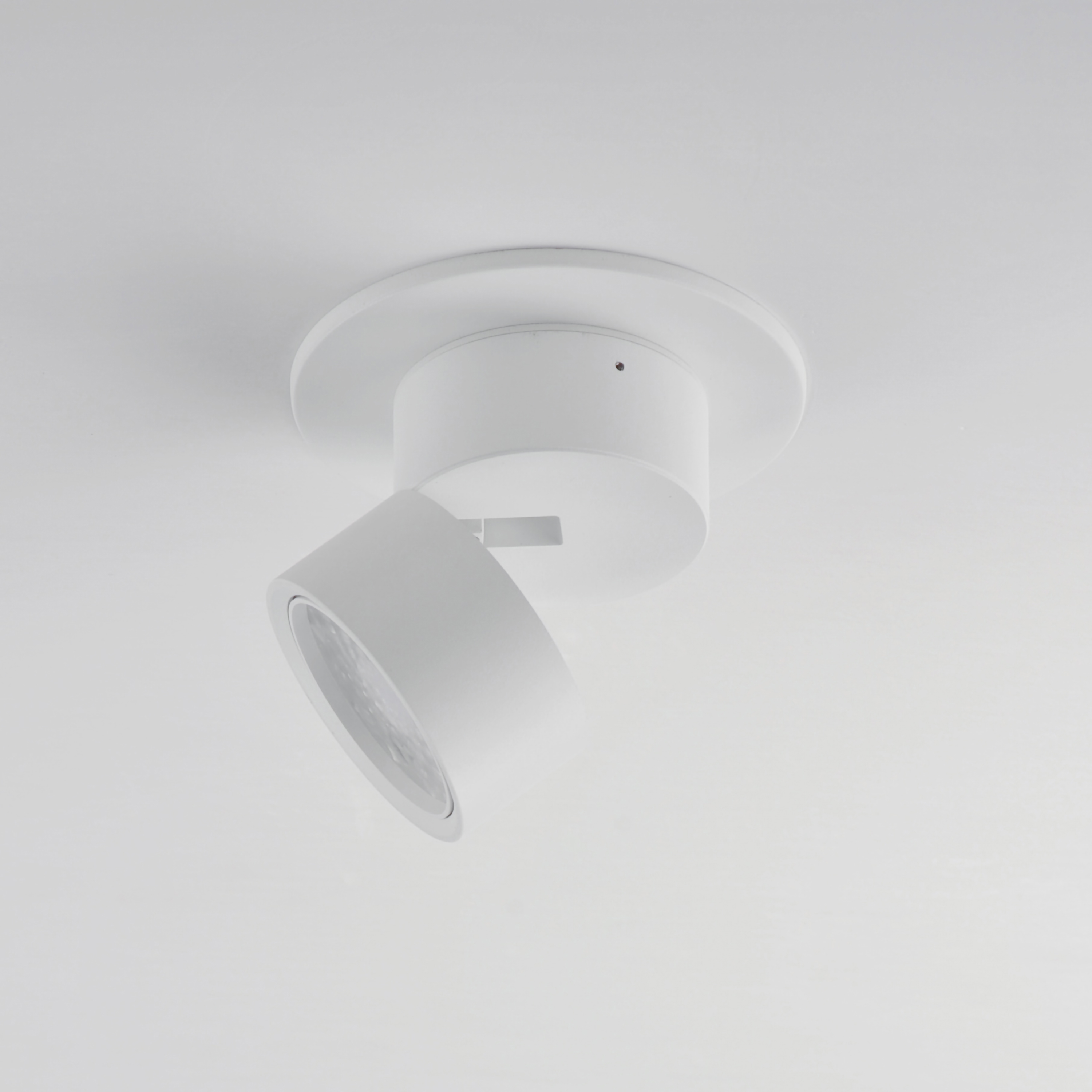

Inconspicuously recessed within its cylindrical house, an extending arm transforms this surface mounted light fixture into an adjustable spotlight. Simply unthread the top half along the seam to extend the frame length and swing the fixture into position. Twist the lens on the face of this fixture to adjust its beam angle spread. Available in Black and White and two apertures that include a mud-in ring for an even cleaner installation.
Collection: Swinger Click for Addtional Information on the Cubic Collection
Type: Utility Items
Material: Aluminum, Glass
Finish: White WT
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Total Wattage: 12
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1030 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac or ELV at 120V
Input Voltage: 120-277
MEASUREMENTS

Width: 5.25"
Height: 3.25"
Length: 5.25"
Wire Length: 8"
Hanging Weight: 0.88 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 5.25"
Canopy Height: 0.25"
Canopy Length: 5.25"
CERTIFICATIONS/ OTHER

Safety Rating: Dry
CA Title 24 Click for Additional Information on Title 24
Finish: White
Material: Aluminum, Glass

MAIN



Inconspicuously recessed within its cylindrical house, an extending arm transforms this surface mounted light fixture into an adjustable spotlight. Simply unthread the top half along the seam to extend the frame length and swing the fixture into position. Twist the lens on the face of this fixture to adjust its beam angle spread. Available in Black and White and two apertures that include a mud-in ring for an even cleaner installation.
