Home > Utility Items > CounterMax 5K Lite 40" LED Under Cabinet - 5CCT
UCL-89877BZ

CounterMax 5K Lite

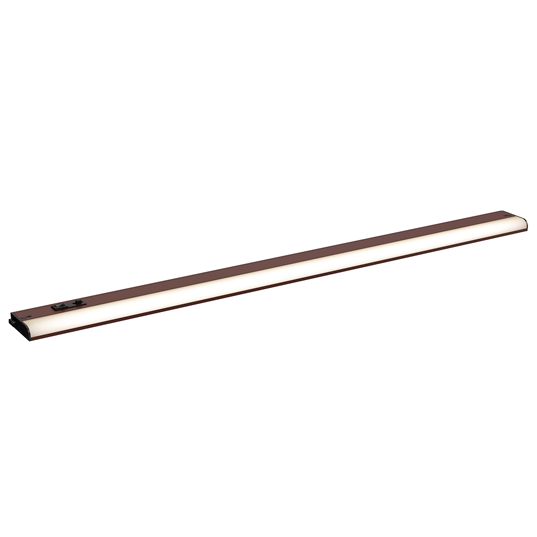

CounterMax 5K Lite 40" LED Under Cabinet - 5CCT

UCL-89877BZ
$108.00



Collection: CounterMax 5K Lite Click for Addtional Information on the Cubic Collection
Type: Utility Items
Material: Aluminum, PC
Finish: Bronze BZ

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20
Total Wattage: 20
Lighting Direction: Down
Install Up/Down: Down
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1300 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 27-30-35-40-50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac or ELV
Input Voltage: 120
MEASUREMENTS

Width: 3"
Height: 1"
Length: 40"
Wire Length: 6"
Hanging Weight: 2.75 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Dry
CA Title 24 Click for Additional Information on Title 24
Finish: Bronze
Material: Aluminum, PC
