Home > Pendants > Wafer 15" SQ LED Pendant 3000K
57838WTBZ

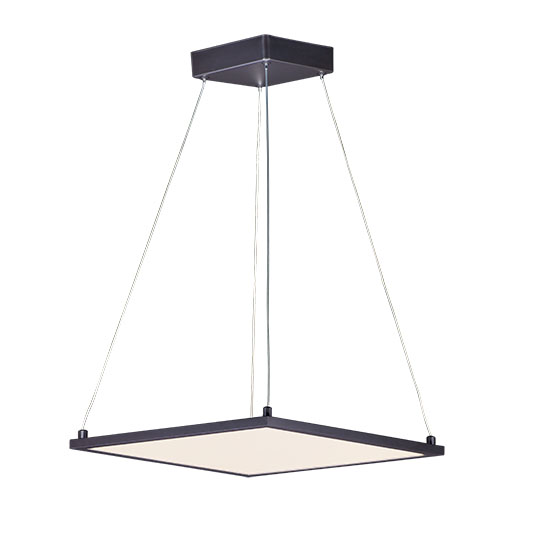

Wafer 15" SQ LED Pendant 3000K
Wafer 15" SQ LED Pendant 3000K
Wafer 15" SQ LED Pendant 3000K

Wafer

Wafer 15" SQ LED Pendant 3000K

57838WTBZ
$144.00



Discontinued
Wafer was designed for the discriminate consumer who wants the low profile look of recessed without the high cost. Manufactured of die cast aluminum, Wafer brings ultimate heat dissipation to its edge lit technology. Edge lighting gives very even light distribution while dispersing heat over a larger area. The result of this is longer LED life and better light diffusion.
Collection: Wafer Click for Addtional Information on the Cubic Collection
Type: Single Pendant
Material: Aluminum, Acrylic
Finish: Bronze BZ

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 36
Total Wattage: 36
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 2200 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Photo Cell: N
CRI: 90
Dimmable: Triac CL
Input Voltage: 120-277
MEASUREMENTS

Width: 15"
Height: 0.5"
Length: 15"
Max Overall Height: 122"
Min Overall Height: 5"
Wire Length: 120"
Hanging Weight: 6.7 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 6"
Canopy Height: 1.5"
Canopy Length: 6"
CERTIFICATIONS/ OTHER

Safety Rating: Wet
Title 24: JA8 Listed Click for Additional Information on Title 24
Finish: Bronze
Material: Aluminum, Acrylic



Wafer was designed for the discriminate consumer who wants the low profile look of recessed without the high cost. Manufactured of die cast aluminum, Wafer brings ultimate heat dissipation to its edge lit technology. Edge lighting gives very even light distribution while dispersing heat over a larger area. The result of this is longer LED life and better light diffusion.

Lighting Tips:






Awards
Reviews
