Home > Pendants > Scope Large LED Pendant
10196CLFTPC
Scope Large LED Pendant
Scope Large LED Pendant

Scope

Scope Large LED Pendant

10196CLFTPC
$138.00

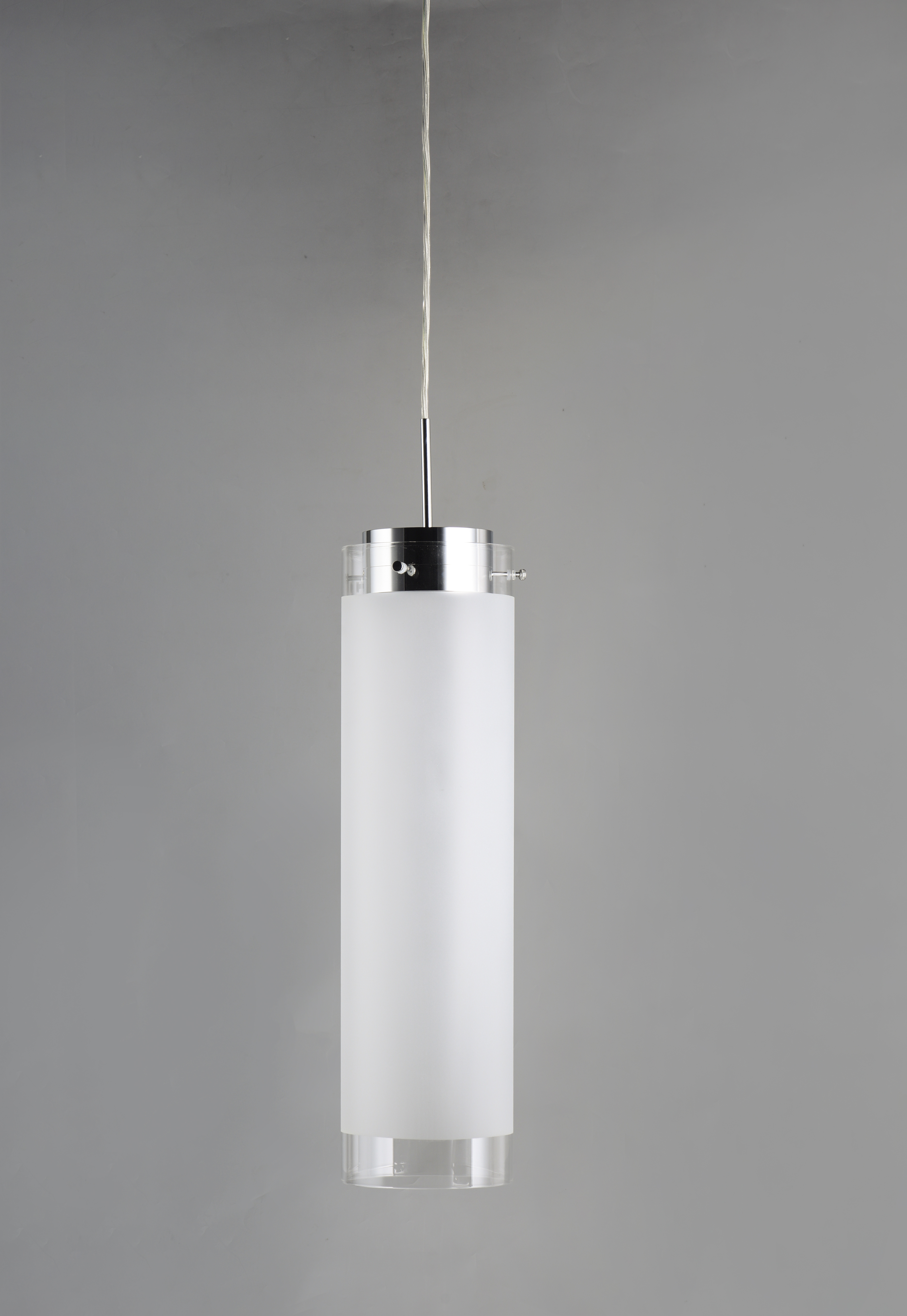

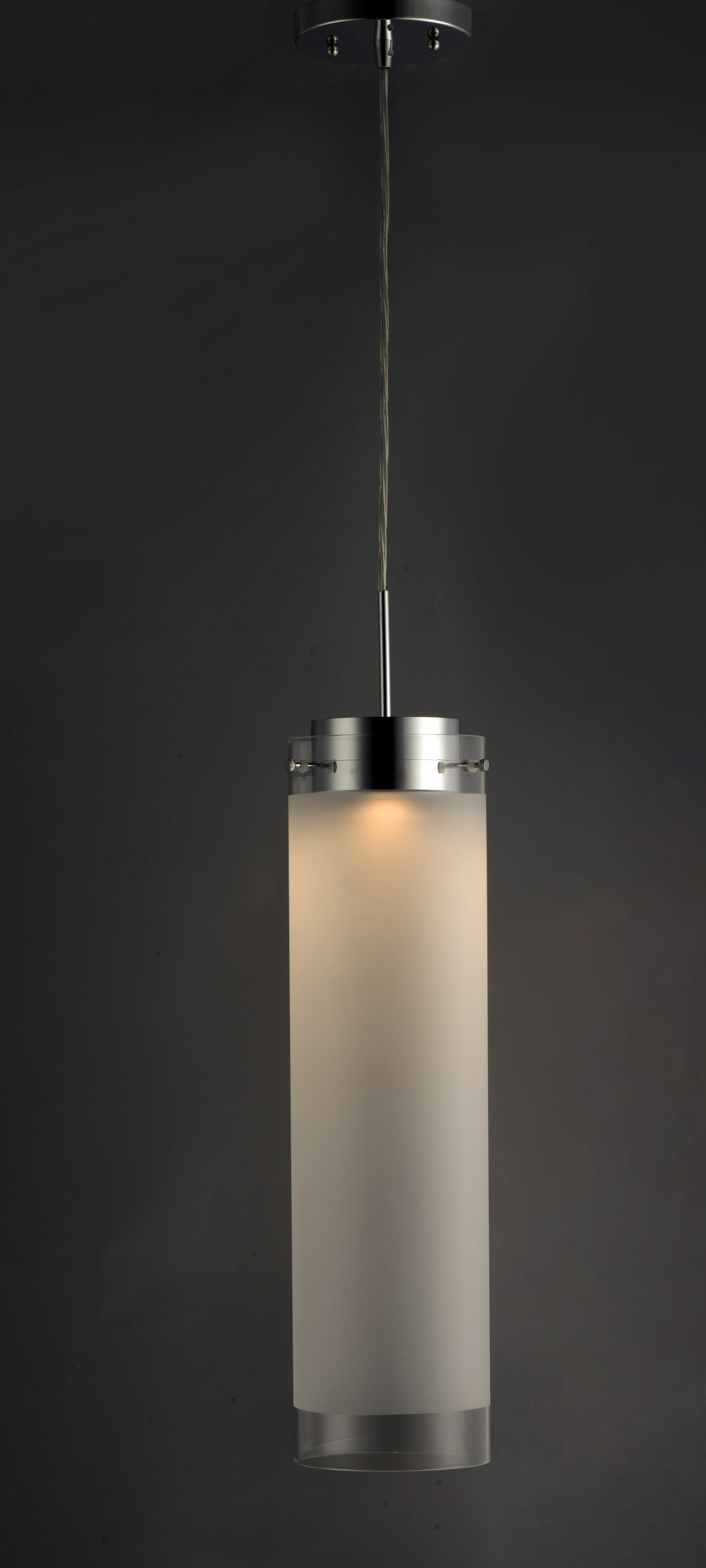

High tech LED modules are encased in die-cast housings finished in Polished Chrome. They support Frost glass cylinders with a Clear reveal on both ends. This classic design is a staple for contemporary pendants. Available in three sizes.
Collection: Scope Click for Addtional Information on the Cubic Collection
Type: Single Pendant
Material: Steel, Glass
Finish: Polished Chrome PC
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 12
Total Wattage: 12
Rated Life: 40,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 720 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 80+
Dimmable: Triac CL
Input Voltage: 120

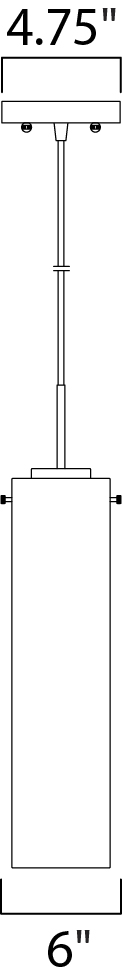

MEASUREMENTS

Width: 6"
Height: 19"
Length: 6"
Max Overall Height: 139"
Min Overall Height: 22.5"
Wire Length: 120"
Hanging Weight: 3.3 lb.
Adjustable: No
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 4.75"
Canopy Height: 0.75"
Canopy Length: 4.75"
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Slope: 120
Finish: Polished Chrome
Material: Steel, Glass

MAIN



High tech LED modules are encased in die-cast housings finished in Polished Chrome. They support Frost glass cylinders with a Clear reveal on both ends. This classic design is a staple for contemporary pendants. Available in three sizes.

Lighting Tips:
