Home > Countermax Cabinet Counter Task Lighting > CounterMax Slim Line 36" LED Under Cabinet
88903WT

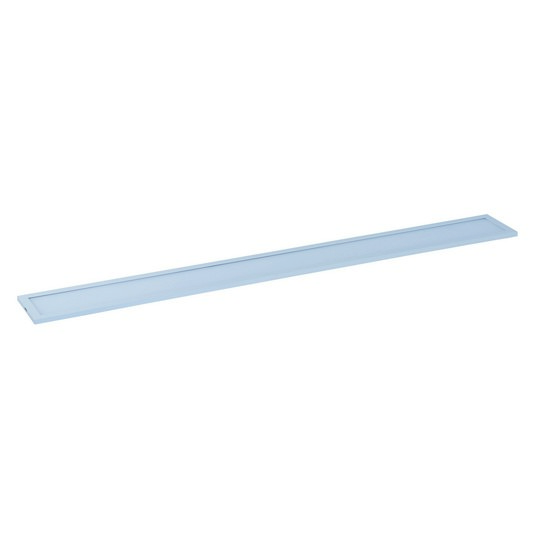

CounterMax Slim Line 36" LED Under Cabinet

CounterMax MX-L-120-SL

CounterMax Slim Line 36" LED Under Cabinet

88903WT
$130.00



Discontinued Driver must be purchased (Sold Separately)

Collection: CounterMax MX-L-120-SL Click for Addtional Information on the Cubic Collection
Type: Under Cabinet
Material: Aluminum
Finish: White WT

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 18
Total Wattage: 18
Rated Life: 40,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1080 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: Triac CL
Input Voltage: 24

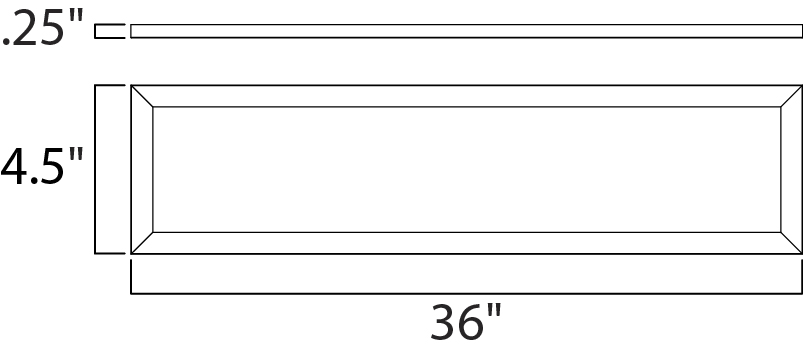

MEASUREMENTS

Width: 4.5"
Height: 0.25"
Length: 36"
HCO: 0.25"
BP Width: 1.9"
Max Overall Height: 0.25"
Min Overall Height: 0.25"
Hanging Weight: 2.1 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Energy Star: Yes Click for Additional Information on ENERGY STAR
Finish: White
Material: Aluminum
