Home > Countermax Cabinet Counter Task Lighting > CounterMax MX-X12 30" 4-LT 12V Xenon Add-On
87863WT

CounterMax MX-X12

CounterMax MX-X12 30" 4-LT 12V Xenon Add-On

87863WT
$56.00



Discontinued

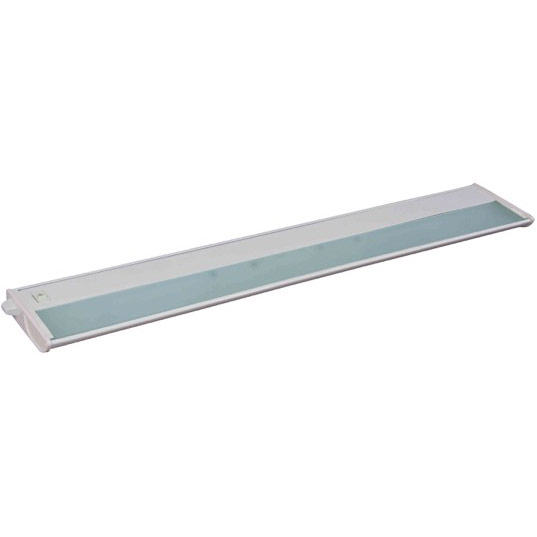

This ultra low-profile design of the CounterMax MX-X12 Series xenon under cabinet lighting conceals long-lasting, low-voltage Xelogen bulbs that distribute a crisp bright light. Hinged tops allow for convenient bulb replacement, and push-in wire connectors in the junction box make either direct wire or plug-in installation quick and simple.
Collection: CounterMax MX-X12 Click for Addtional Information on the Cubic Collection
Type: Under Cabinet
Material: Aluminum
Finish: White WT

pdf Specification Sheet
LAMPING

Number of Bulb: 4
Light Type: Xenon
Bulb Type: 12V Wedge T5 Xelogen An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 18
Total Wattage: 72
Rated Life: 10,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 1056 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2900 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included
Dimmable: Low-Voltage Electronic
Input Voltage: 120

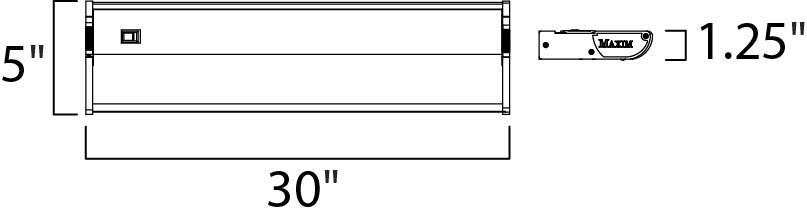

MEASUREMENTS

Width: 5"
Height: 1.13"
Length: 30"
Hanging Weight: 3.3 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Finish: White
Material: Aluminum



This ultra low-profile design of the CounterMax MX-X12 Series xenon under cabinet lighting conceals long-lasting, low-voltage Xelogen bulbs that distribute a crisp bright light. Hinged tops allow for convenient bulb replacement, and push-in wire connectors in the junction box make either direct wire or plug-in installation quick and simple.

Lighting Tips:
