Home > Countermax Cabinet Counter Task Lighting > CounterMax MX-LD-AC LED Puck 3000K
53830WT

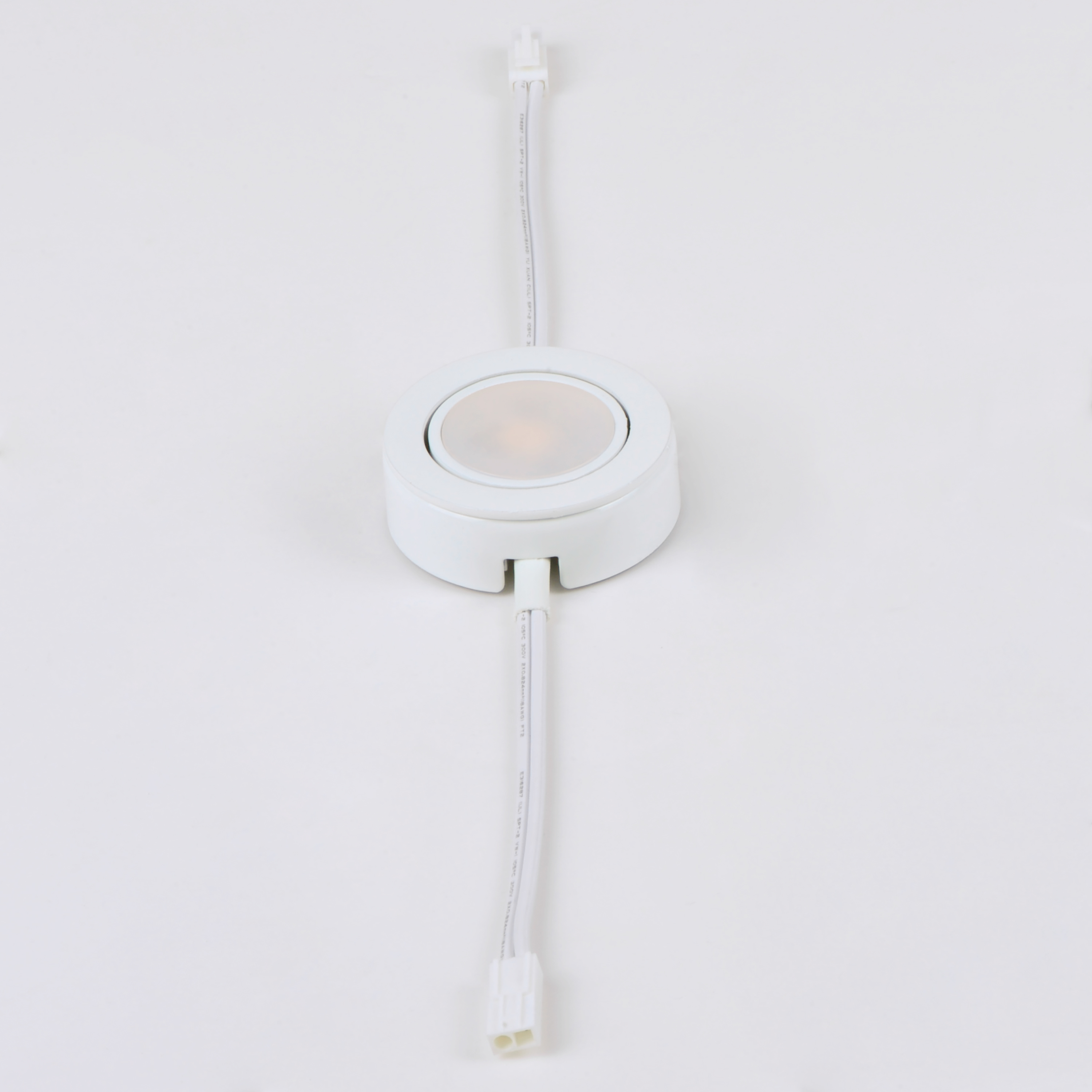

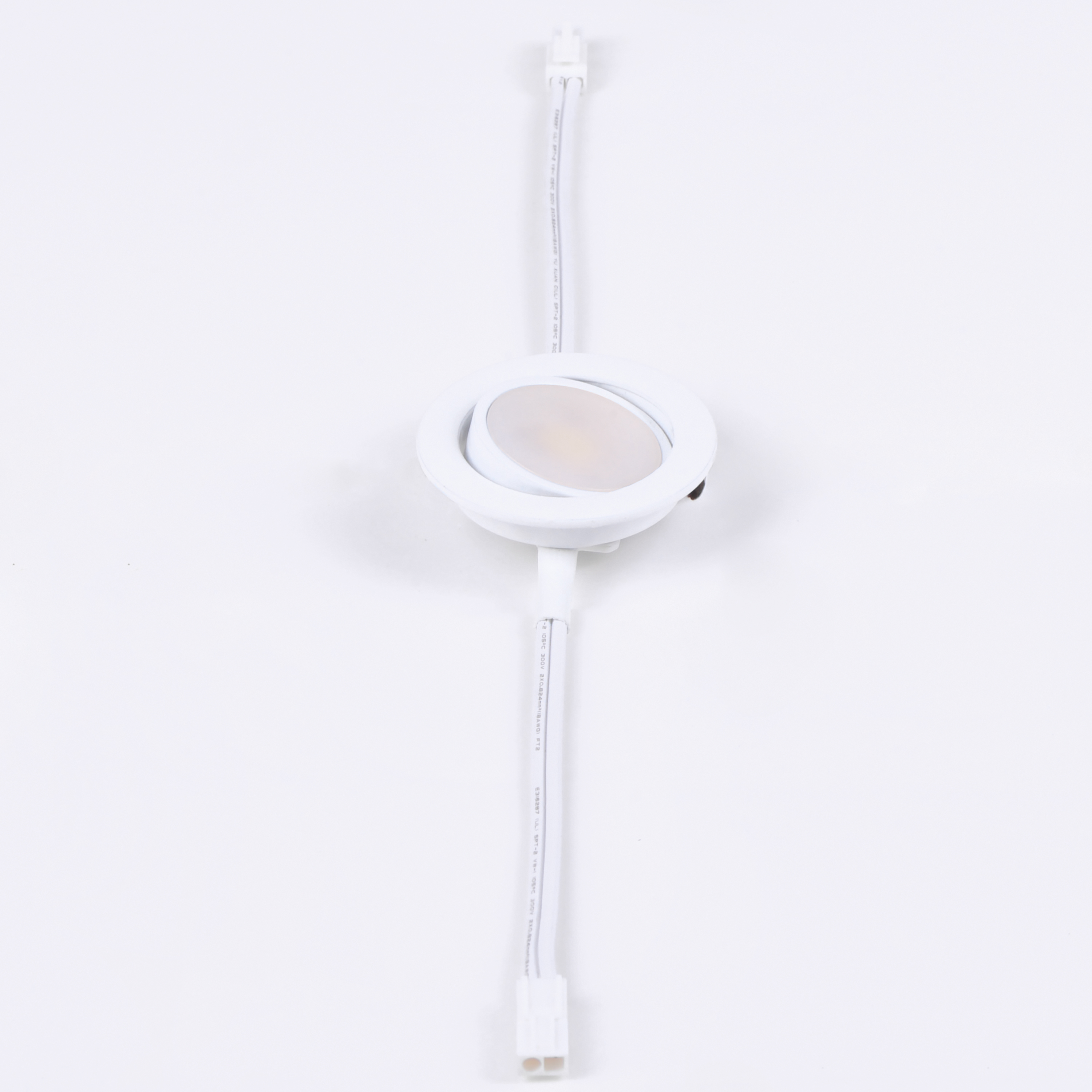

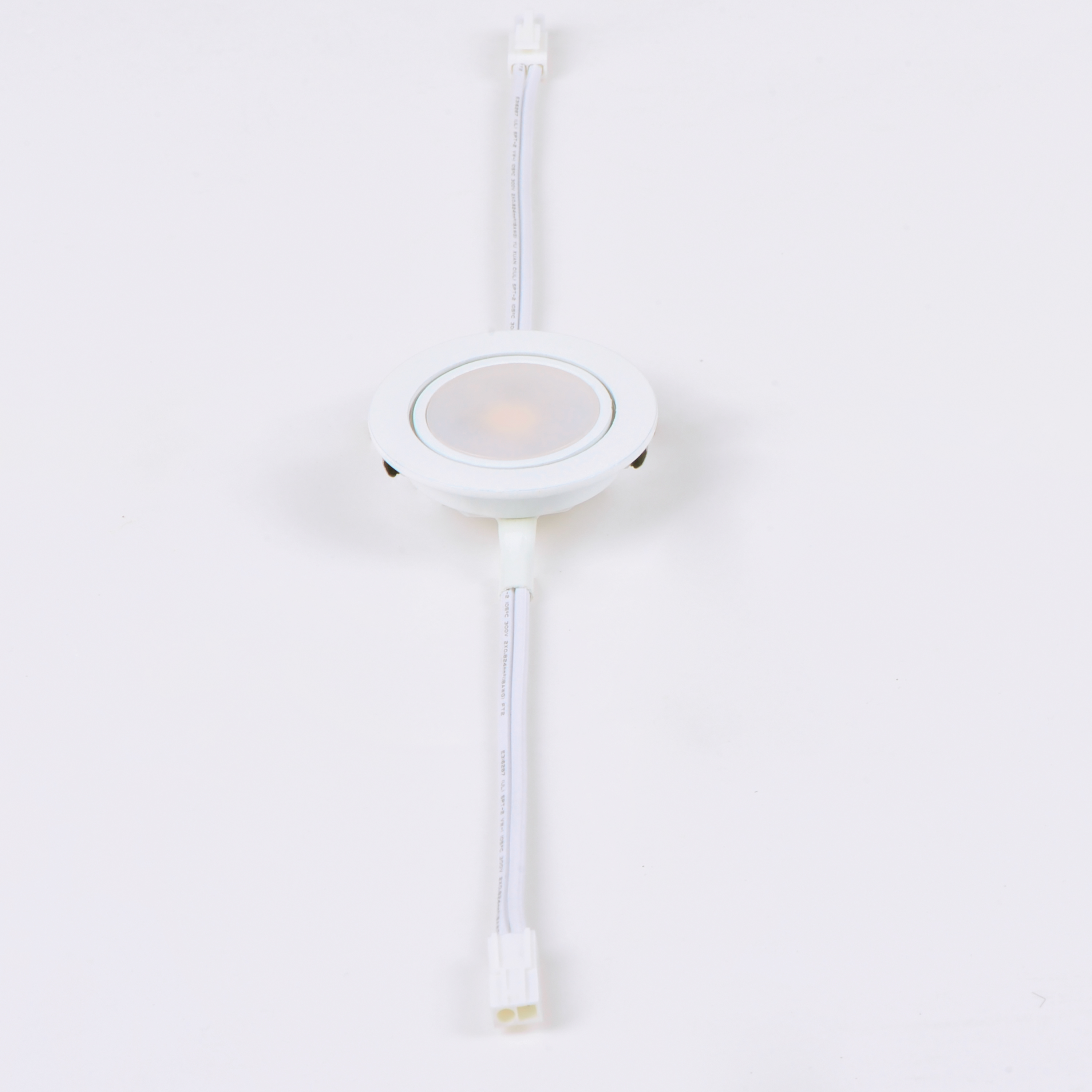

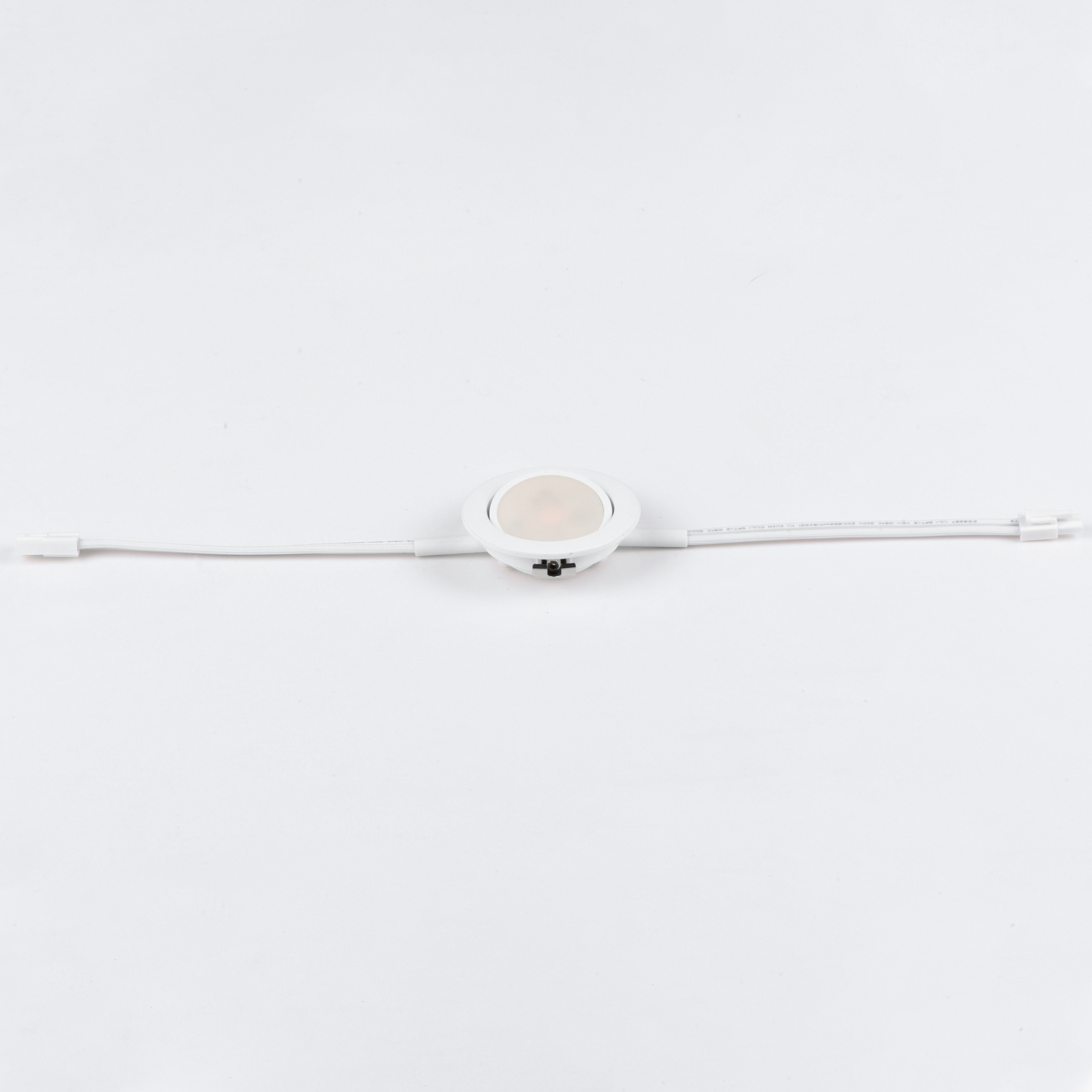

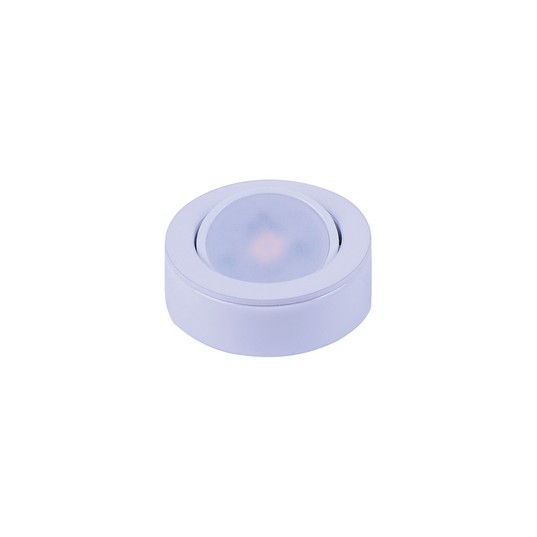

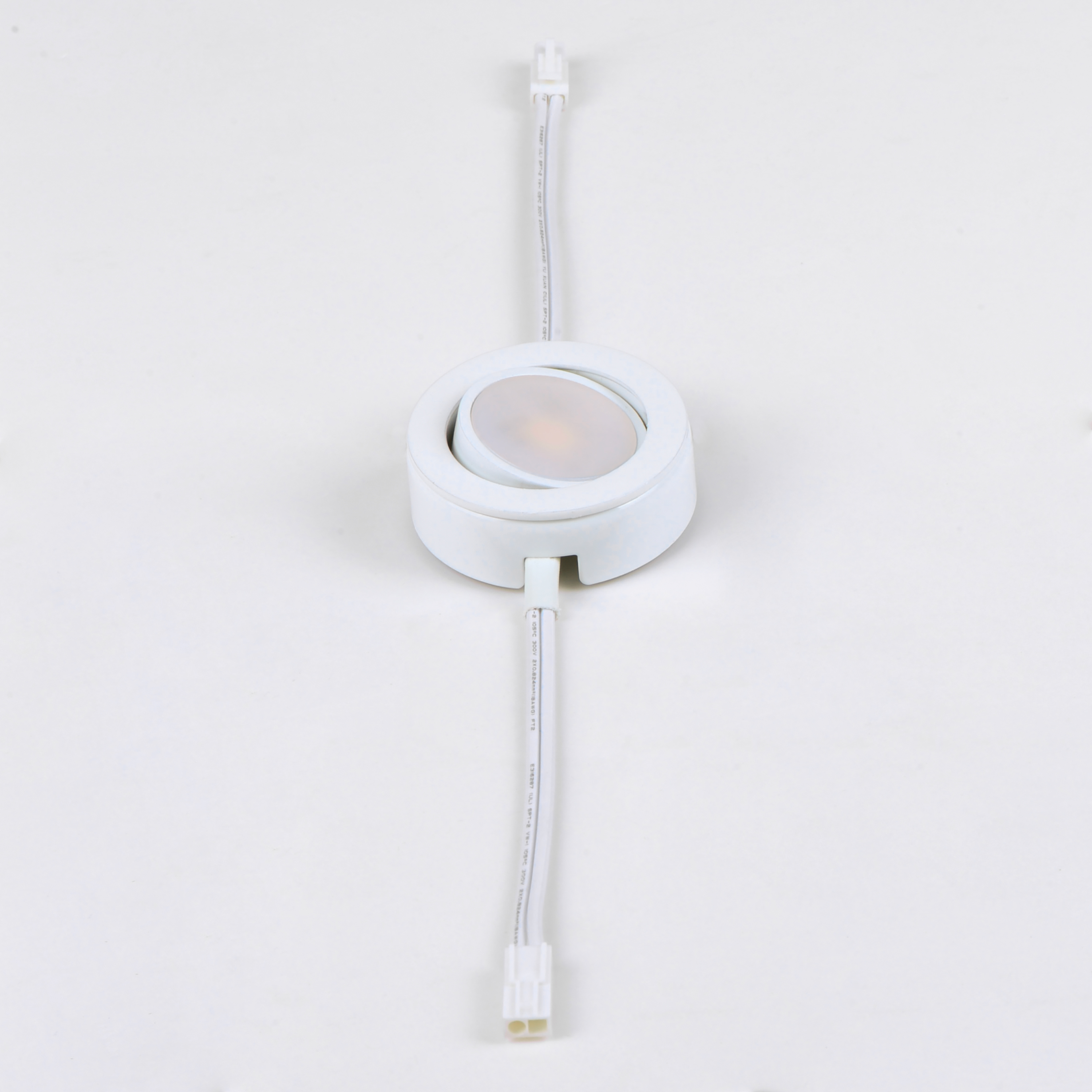

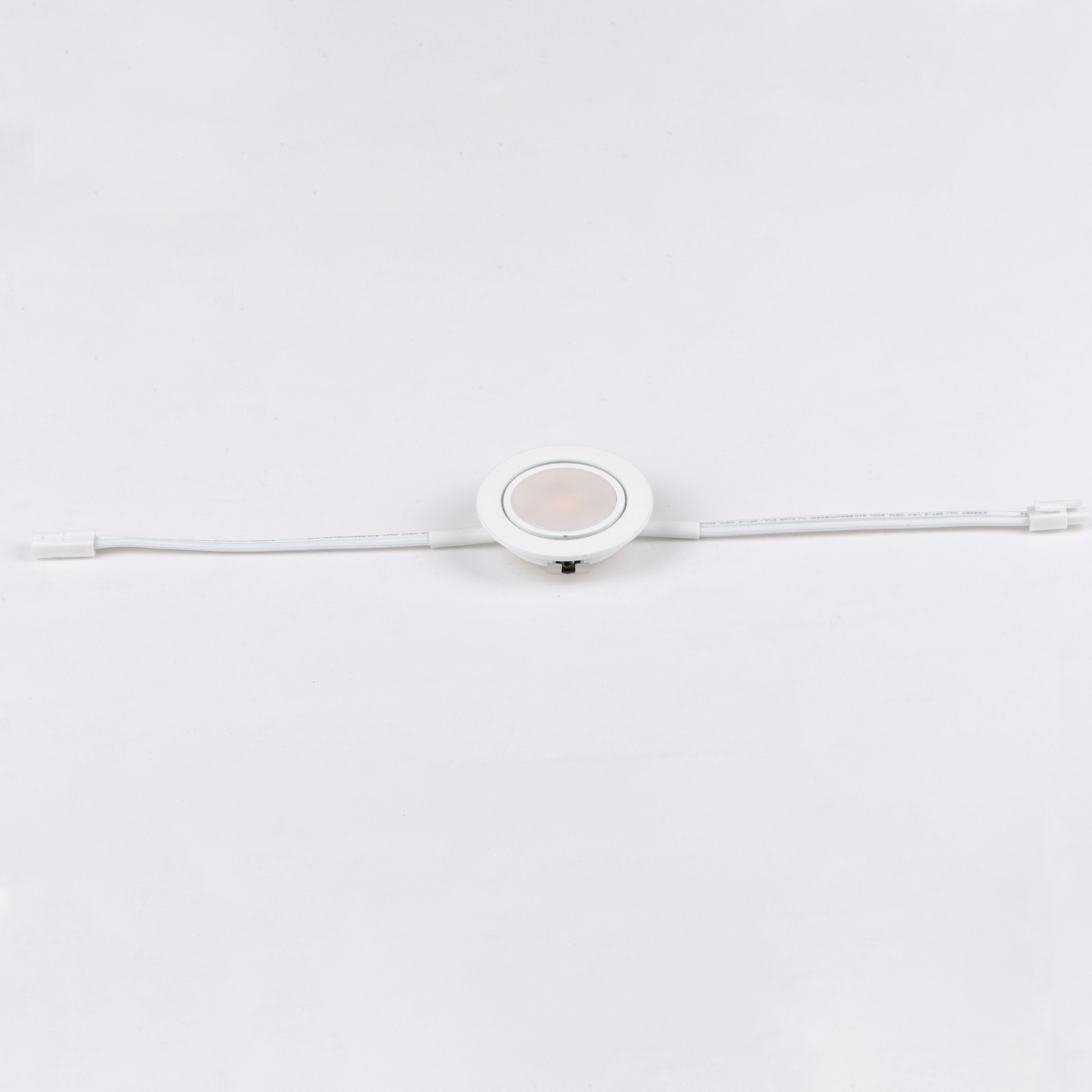

CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K
CounterMax MX-LD-AC LED Puck 3000K

CounterMax MX-LD-AC

CounterMax MX-LD-AC LED Puck 3000K

53830WT
$32.00


The versatile MX-LD-AC LED disc features two piece aluminum construction that allowing for surface mounting all recessed. They are designed for daisy chain installation of up to 20 discs on one power supply. Fully dimmable with ELV and Triac dimmers. This combination of versatility, safety, energy efficiency and dimmability make the MX-LD-AC LED discs the smart choice for disc lighting.
Collection: CounterMax MX-LD-AC Click for Addtional Information on the Cubic Collection
Type: Under Cabinet Disc
Material: Aluminum
Finish: White WT
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 4
Total Wattage: 4
Delivered Lumens: 200 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: Triac CL
Input Voltage: 120
MEASUREMENTS

Width: 2.75"
Height: 1"
Length: 2.75"
Hanging Weight: 0.38 lb.
Adjustable: No
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Finish: White
Material: Aluminum

MAIN



The versatile MX-LD-AC LED disc features two piece aluminum construction that allowing for surface mounting all recessed. They are designed for daisy chain installation of up to 20 discs on one power supply. Fully dimmable with ELV and Triac dimmers. This combination of versatility, safety, energy efficiency and dimmability make the MX-LD-AC LED discs the smart choice for disc lighting.
